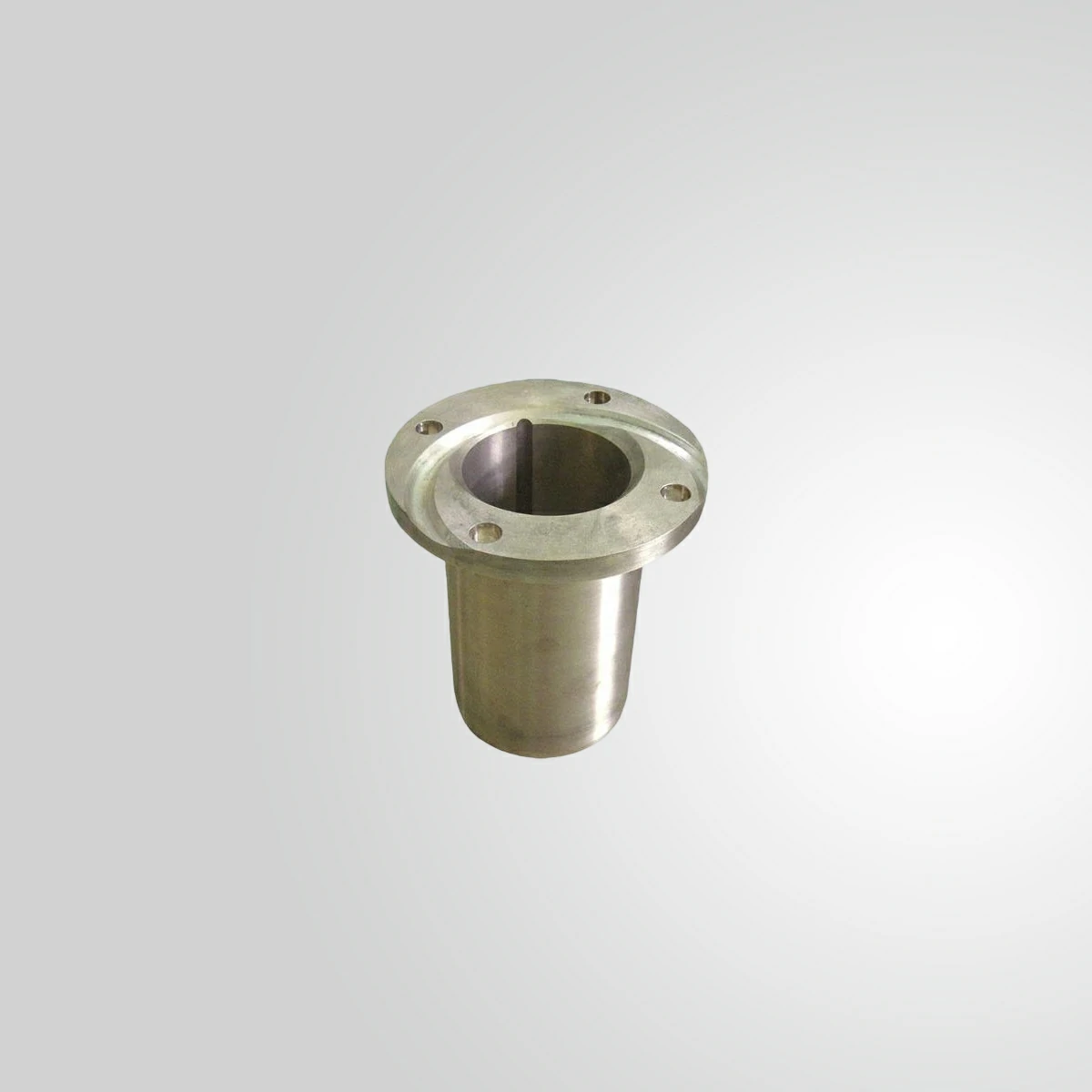

FlSmidth Crusher Parts Bronze Bushing CUNTR-SFTRXL304-0004

Engineering Analysis of High-Lead Bronze Countershaft Bushings for FLSmidth Cone Crushers

The countershaft bushing serves as the primary sacrificial interface between the high-speed horizontal pinion shaft and the crusher frame. For FLSmidth series cone crushers, maintaining the precise mesh between the pinion and the eccentric gear is contingent upon the dimensional stability and tribological performance of this component. The following technical evaluation details the material specifications and operational thresholds for part number CUNTR-SFTRXL304-0004.

Material Tribology and Load Distribution (HB 70-85)

While standard industrial bronzes vary widely, this bushing utilizes a specific high-lead tin bronze alloy. The hardness range of 70-85 HB is engineered to balance two conflicting requirements in mining environments:

• Embeddability: The matrix is soft enough to allow microscopic abrasive particles (silica dust common in mining sites) to embed into the bushing wall, preventing catastrophic scoring of the more expensive countershaft.
• Fatigue Resistance: Despite the inclusion of lead for self-lubrication, the tin content ensures the matrix maintains a compressive strength of \≥ 125 MPa, critical for absorbing the radial thrust generated during “crushing pinch” cycles.

Thermal Stability and Lubrication Boundary Layers

The 260°C maximum operating temperature rating is significantly higher than standard hydrodynamic film temperatures (usually 60°C–85°C). This overhead is vital for preventing adhesive wear (galling) during “dry start” scenarios. In FLSmidth applications, the high density (8.9-9.1 g/cm³) ensures high thermal conductivity, allowing the bushing to dissipate heat into the crusher frame and the circulating oil lube system more efficiently than lighter, porous alternatives.

Maintenance Synergy for FLSmidth Series

Part number CUNTR-SFTRXL304-0004 is designed for a precision interference fit. When replacing these bushings in the field, maintenance supervisors should note:

• Clearance Optimization: Excessive radial clearance leads to vibration and premature gear tooth wear. This bushing’s thermal expansion coefficient is matched to FLSmidth frame specifications to maintain an ideal oil film thickness at steady-state temperatures.
• Lubrication Grooving: The alloy’s grain structure supports the retention of boundary lubricants even when the crusher is subjected to the high-impact “tramp iron” events common in secondary and tertiary crushing stages.
