Cone Crusher Bowl Liner Supplier & Manufacturer
Cone crusher bowl liner and wear parts warehouse
Yonsmen supplies Cone Crusher Bowl Liners, also known as cone crusher concaves, for mining, quarrying, aggregate and cement crushing plants.
Our bowl liners are produced from high-manganese steel such as Mn13Cr2, Mn18Cr2 and Mn22Cr2, supporting standard profiles, custom chambers, stock supply and production by drawing or sample.
Compatible Cone Crusher Brands and Chamber Types
Yonsmen cone crusher bowl liners can be supplied for many popular cone crusher brands and model series. Standard and customized chamber profiles are available to match different feed sizes, output requirements and crushing applications.
Metso / Nordberg
- HP100, HP200, HP300, HP400, HP500, HP800
- GP100, GP200, GP300, GP500
- Symons 2ft, 3ft, 4.25ft, 5.5ft, 7ft
Sandvik
- CH420, CH430, CH440, CH660, CH870, CH880
- CS420, CS430, CS440, CS660
- H-series cone crusher wear parts
FLSmidth / Raptor
- Raptor XL300, XL400, XL600
- Raptor XL900, XL1100, XL2000
- Cone crusher bowl liner and mantle
Other Crusher Brands
- Telsmith cone crusher wear parts
- Terex / Cedarapids cone crusher parts
- Trio cone crusher bowl liners
Custom Chamber Options
Standard Chamber
Suitable for general cone crusher applications where balanced capacity, product shape and liner life are required.
Short Head Chamber
Commonly used for finer crushing stages, helping achieve smaller output size and better particle control.
Fine / Medium / Coarse
Different chamber profiles are available to match feed size, crushing stage and production requirements.
Custom Profile Support
We can manufacture bowl liners by drawing, sample, OEM part number or actual working condition.
High-Manganese Steel Bowl Liner
The bowl liner acts as the stationary crushing surface inside the cone crusher. Together with the mantle, it forms the crushing chamber and directly affects crushing efficiency, product shape, wear life and maintenance schedule.
High-manganese steel has strong work-hardening properties. As rock impacts the liner surface, the surface becomes harder while the core remains tough enough to resist cracking.
Bowl liner factory production and processing

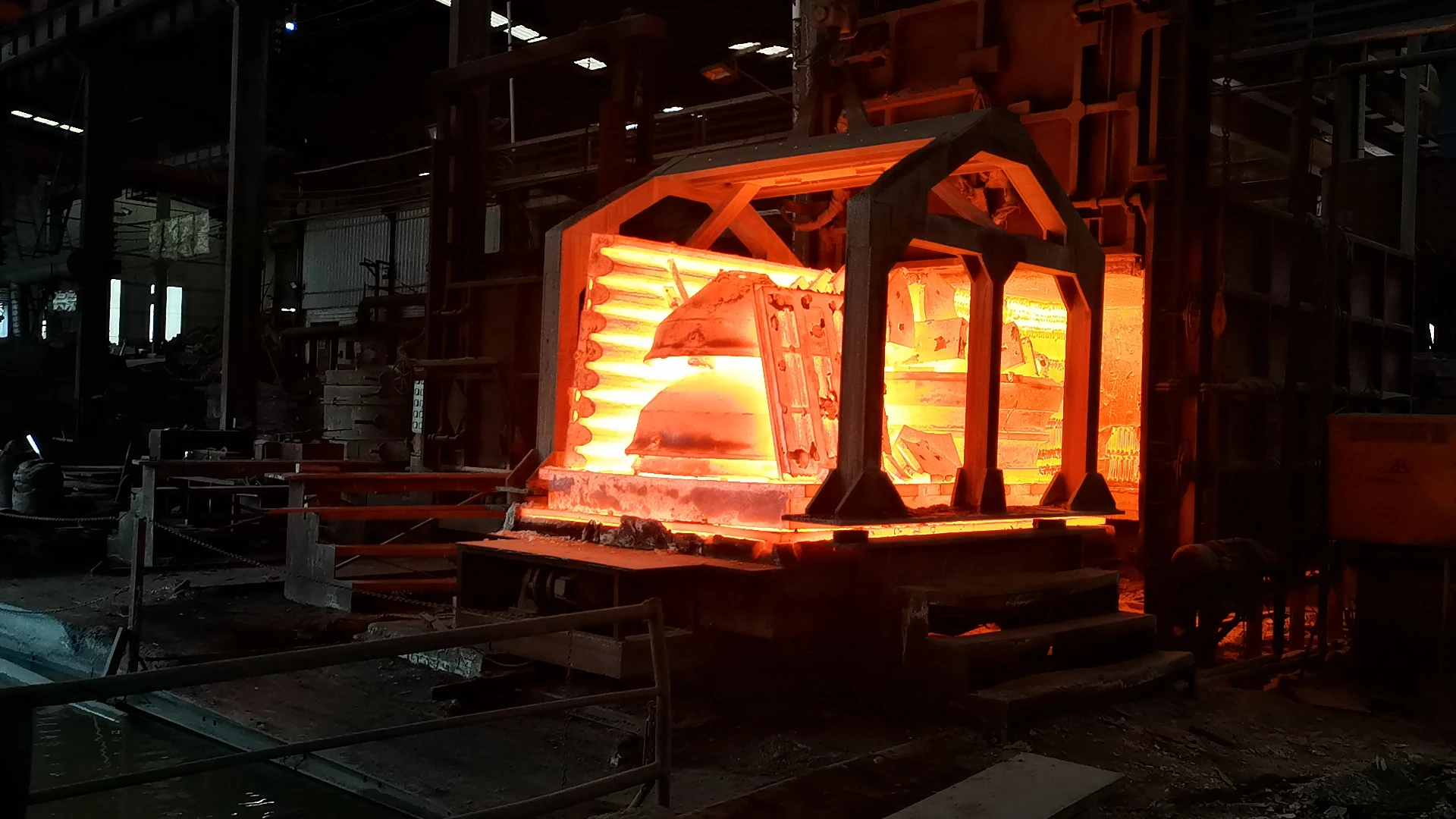

Factory Casting and Heat Treatment
Casting and heat treatment are critical to the final performance of cone crusher bowl liners. Proper casting control helps reduce internal defects, while heat treatment improves toughness, wear resistance and service stability.
Yonsmen focuses on material composition, casting quality, heat treatment control and dimensional inspection to help the liner fit correctly and perform reliably under demanding crushing conditions.
Casting and heat treatment for cone crusher wear parts
Precision Casting for Better Fit
A quality bowl liner should seat correctly against the adjustment ring and maintain stable positioning during crusher operation. Poor fitting may cause movement, uneven wear, abnormal vibration or reduced liner life.
Our bowl liners are produced with controlled casting and finishing processes to help ensure proper installation, stable operation and consistent wear performance.
Casting factory for cone crusher wear components
Factory Supply for Cone Crusher Parts
In addition to bowl liners, Yonsmen can also supply matching cone crusher wear parts and spare parts, including mantle, feed cone, torch ring, locking nut, eccentric bushing, head bushing, socket liner and other crusher components.
Common models can be supported by stock inventory, while non-standard bowl liners and special chamber profiles can be manufactured according to customer requirements.
Factory supply for cone crusher parts
Key Features of Yonsmen Cone Crusher Bowl Liner
Custom Chamber Options
Available in standard, short head, fine, medium and coarse profiles to match different feed size and output requirements.
Precision Casting
Controlled casting and finishing help ensure a proper seat against the adjustment ring and reduce movement during operation.
Extended Service Life
Optimized liner profile helps promote uniform wear, allowing better utilization of liner weight before replacement.
Wear-Resistant Material
High-manganese steel materials such as Mn13Cr2, Mn18Cr2 and Mn22Cr2 are available for different crushing conditions.
Why Choose Yonsmen Bowl Liner
Factory Manufacturer
We support casting, heat treatment, machining and inspection for cone crusher bowl liners and related wear parts.
Material Selection
Mn13Cr2, Mn18Cr2 and Mn22Cr2 materials are available for different crushing conditions and wear requirements.
Stock and Customization
Common bowl liner models can be supplied from stock, and special parts can be customized by drawing, sample or part number.
Model Matching Support
We can help match bowl liners by crusher model, OEM part number, drawing, sample or actual working condition.
FAQ About Cone Crusher Bowl Liner
1. What is a cone crusher bowl liner?
A cone crusher bowl liner, also called a concave, is the stationary wear liner inside the cone crusher. It works together with the mantle to crush rock and protect the crusher body from direct wear.
2. What materials are available for bowl liners?
Yonsmen can supply bowl liners in high-manganese steel materials such as Mn13Cr2, Mn18Cr2 and Mn22Cr2. Material selection depends on rock hardness, abrasiveness, feed size and crushing stage.
3. Can you customize the chamber profile?
Yes. We can provide standard, short head, fine, medium and coarse chamber profiles. Custom chamber design can also be supported according to drawings, samples or working conditions.
4. Do you supply matching mantles and other cone crusher parts?
Yes. Besides bowl liners, we can also supply cone crusher mantles, feed cones, torch rings, locking nuts, bronze bushings, socket liners and other cone crusher spare parts.
