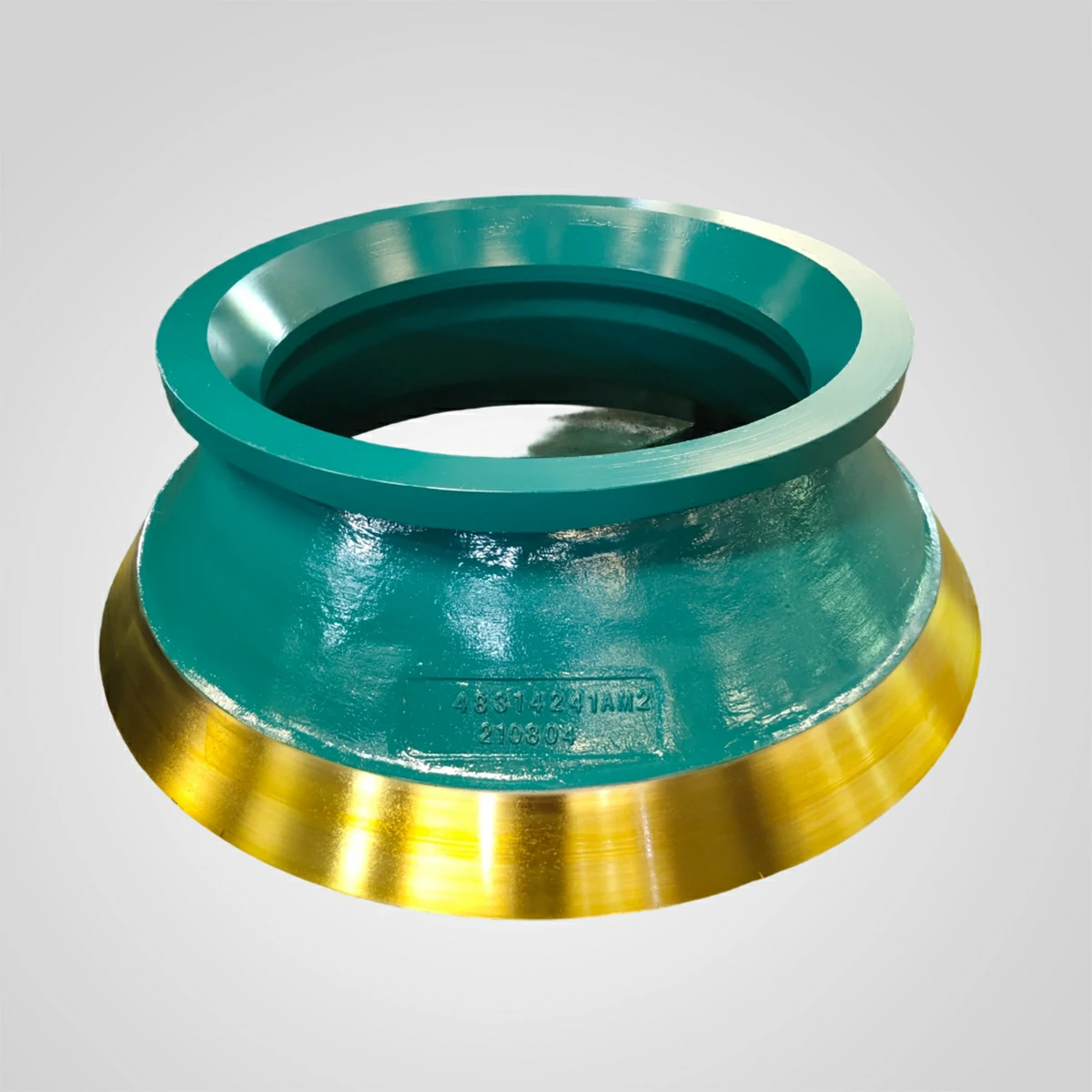

Bowl Liner 48314241 Specification for HP500 Cone Crusher

Operating Pain Point and Cost Control

The most expensive failure pattern for this type of Bowl Liner is not always visible cracking. A distorted wear profile can reduce capacity, increase liner wear rate, raise crushing force, and create ring movement before the liner looks fully consumed. HP cone crusher guidance states that the chamber should be choke fed, with the feed level kept 300 mm or more above the feed plate, and the material should be distributed evenly through 360 degrees around the chamber. If one side receives coarse rock and the opposite side receives fines, the liner develops uneven loading, unstable power cycles, and localized wear bands. Oversize feed can reduce capacity and cause abnormal liner wear, while feed that is too small for the cavity can concentrate wear near the lower liner area. Fines from 0 to 4 mm should be screened out before entering the crusher because packing can appear as adjustment ring movement and force overload.

This is the maintenance point many purchasing teams miss. Buying a replacement liner solves only the inventory problem, not the wear mechanism. If the site installs a new 48314241 Bowl Liner while keeping the same off center feed chute, excessive fines, or unstable closed side setting, the new liner may reproduce the same failure pattern. The cost saving logic is direct. Record installation date, removal date, processed tonnage, closed side setting movement, feed source, screen condition, and observed wear profile for each liner cycle. After two or three cycles, the site can define a realistic replacement window and avoid emergency freight, idle plant hours, and secondary damage to the bowl, adjustment ring, torch ring, mantle, and locking components. A crusher part supplier that understands wear data can help the buyer compare cost per ton instead of judging only the unit price of crusher parts.

Installation, Inspection, and Service Recommendation

Before installation, the maintenance team should clean the bowl seating surface, remove packed material and old backing residue, and check for burrs, fretting marks, cracked locking areas, or uneven contact points. The new Bowl Liner should not be forced into place with impact loading because casting shock and poor seating can create stress concentration after start up. Lifting equipment must be rated for the actual part weight, but the net weight of 48314241 was not publicly confirmed, so weight should be verified from the supplier drawing, packing list, or foundry inspection report before rigging. During commissioning, run the crusher with stable feed and monitor power draw, adjustment movement, discharge size, and vibration. HP500 operation should not rely on a tight closed side setting to compensate for a wrong cavity or worn mating mantle. If the crusher needs frequent adjustment soon after liner replacement, inspect feed distribution and chamber match before blaming the casting. Liner replacement timing should also be planned before wear reaches the seating surface. HP wear guidance notes that in normal conditions around 50 percent of liner weight may be consumed when liners are worn out, and worn parts should be replaced before damage reaches the liner seating surfaces of the crusher head or bowl. For procurement, every order should request confirmation of 48314241, HP500 suitability, cavity profile, material grade, heat treatment record, chemical analysis, dimensional inspection, and packing method. For operation, keep choke feed, avoid segregation, remove fines before the crusher, maintain a steady power draw, and inspect the wear profile before the liner loses its effective crushing geometry. This approach protects the part, the crusher, and the production schedule.

Other OEM Number

FAQ

What crusher model is Bowl Liner 48314241 used for?

Bowl Liner 48314241 is used for the HP500 cone crusher. Before ordering, the part number, cavity profile, and mating mantle should be confirmed with the crusher serial number or technical drawing.

What should be checked before installing Bowl Liner 48314241?

Before installation, check the bowl seating surface, locking area, old backing residue, liner contact marks, and feed chamber condition. Poor seating contact can cause liner movement, cracking, abnormal wear, and unplanned shutdown.

How can the service life of Bowl Liner 48314241 be extended?

Keep the HP500 crusher choke fed, distribute feed evenly around the chamber, remove excessive fines before crushing, and monitor closed side setting changes. Stable feeding reduces localized wear and helps maintain consistent product gradation.
