4830-0023 Bowl Liner for Symons 4FT SHD: A Field-Focused Cone Crusher Part for Heavy-Duty Crushing

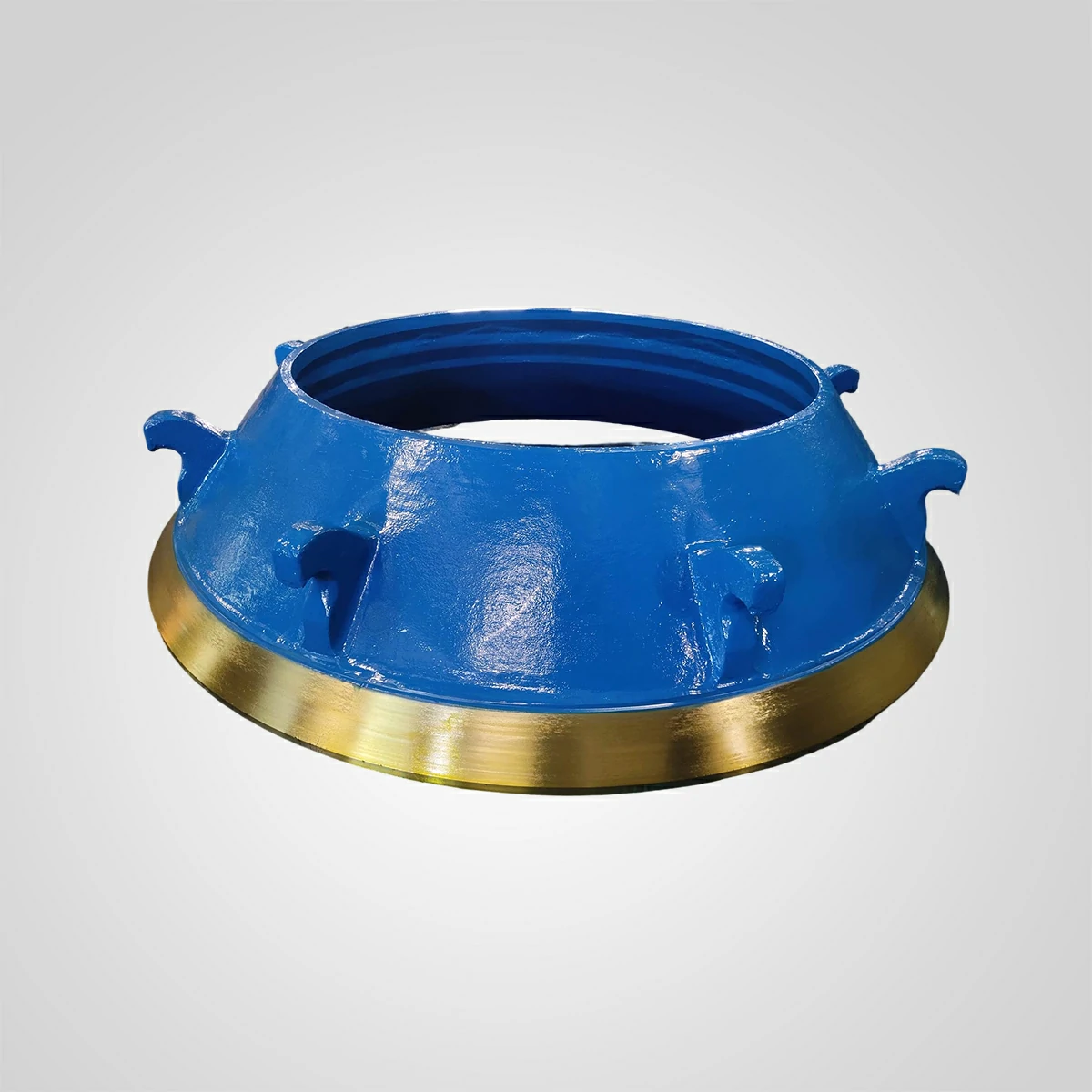

4830-0023 Bowl Liner for Symons 4FT SHD Cone Crusher

Uneven liner seating, oversized feed, and delayed replacement are three common causes of abnormal wear in Symons 4FT SHD cone crushers. The 4830-0023 Bowl Liner is a stationary crushing surface installed inside the bowl assembly, and its condition directly affects chamber geometry, discharge size control, power draw, and the service life of related crusher parts. For a mine maintenance team or a quarry purchasing manager, this is not a decorative casting. It is a 661 kg wear component that must match the crusher model, cavity duty, alloy requirement, and installation tolerance before it enters production.

Technical Specification

Product Overview

The 4830-0023 Bowl Liner is manufactured for the Symons 4FT SHD cone crusher, a spring cone crusher commonly used in secondary and tertiary crushing circuits. As a Cone crusher part, the bowl liner works against the moving mantle to compress rock between two wear surfaces. During operation, feed material enters the crushing chamber from the top, is squeezed under cyclic loading, and exits after the material size is reduced to the required discharge range. The liner profile, alloy condition, and seating contact all influence how efficiently this crushing process is maintained.

This Bowl Liner uses Mn18Cr2 / XT710 material according to the supplied specification. Mn18Cr2 is a manganese steel grade commonly selected for abrasive crushing applications because it can develop a hardened working surface under repeated impact and compression. In practical operation, the material does not perform well if the chamber is constantly starved. A bowl liner needs enough stone-on-stone pressure and stable feed volume to develop an effective work-hardened layer. If the crusher runs with intermittent feed, poor segregation control, or excessive fine material, the liner surface may polish instead of hardening correctly, which can shorten operating life.

The net weight of this liner is 661 kg. That weight matters during logistics, lifting, installation, and safety planning. A 661 kg cone crusher part requires lifting equipment with suitable rated capacity, correct rigging points, and enough working clearance around the crusher. Field crews should avoid impact handling during installation because a heavy manganese casting can damage machined seating surfaces if it is dropped or forced into position. Before installation, the bowl seating area should be cleaned, inspected, and checked for material packing, old backing residue, burrs, or fretting marks. Poor contact between the bowl liner and its supporting structure can create micro-movement under crushing load, which may lead to cracking, abnormal wear, or damage to adjacent crusher spare parts.

Engineering Function in the Crushing Chamber

The Bowl Liner is the fixed wear surface of the crushing chamber. The mantle moves eccentrically below it, and the rock is crushed in the narrowing gap between the two parts. Because this 4830-0023 liner suits the Symons 4FT SHD model, its geometry must correspond with the chamber design intended for that crusher. Even a small mismatch in liner shape can affect feed opening, crushing zone length, discharge control, and material flow. A qualified crusher part supplier should verify the part number, model suitability, material grade, weight, and application conditions before shipment.

In real crushing plants, liner problems often appear first as production symptoms rather than visible casting defects. Operators may notice rising circulating load, unstable product size, more frequent adjustment, higher motor current fluctuation, or reduced throughput. These symptoms may be linked to liner wear, uneven chamber loading, or incorrect feed distribution. Once the bowl liner profile becomes heavily worn, the crusher may still run, but it may no longer crush efficiently. At that stage, the plant pays through higher energy consumption, screen overload, recirculation, and unplanned downtime.

Material Selection and Wear Behavior

Mn18Cr2 / XT710 is selected here to balance impact resistance and wear performance in abrasive applications. The alloy is suitable for many quarry and mining duties where the feed material includes granite, basalt, hard limestone, copper ore, or other abrasive rock types. The wear behavior of this casting depends on feed hardness, feed size distribution, moisture, fines content, chamber fill level, and crusher setting. A Cone crusher part made from manganese steel should not be judged only by chemical composition. Heat treatment, casting soundness, dimensional accuracy, and machining control are also important.

For buyers comparing crusher parts from different crusher spare parts manufacturers, the purchase decision should not stop at unit price. A lower-priced liner that wears unevenly may increase shutdown frequency and create higher total cost per ton. A correctly selected 4830-0023 Bowl Liner should help maintain stable crushing chamber geometry during its wear life. This supports consistent reduction ratio, more predictable discharge gradation, and better utilization of downstream screens and conveyors.

Field Pain Point: Late Replacement Costs More Than the Liner

One common maintenance mistake is running the bowl liner beyond its effective profile life. The worn casting may still have visible metal remaining, but its crushing geometry may already be outside the useful operating range. When the profile is too flat or heavily grooved, the crusher may require tighter adjustment to maintain product size. This increases stress on the machine and can accelerate wear on the mantle, torch ring, locking components, adjustment parts, and other crusher wear parts. The result is a larger repair scope than the original liner replacement.

A practical cost-saving method is to track liner life by operating hours, processed tonnage, feed type, and closed side setting movement. Maintenance teams should record liner installation date, removal date, feed material, average production rate, and reason for replacement. After two or three liner cycles, the site can estimate a safer replacement window. This approach allows the purchasing team to order replacement crusher parts before emergency stockouts occur. It also helps the maintenance team avoid last-minute shutdowns caused by liner cracking, seating movement, or chamber instability.

Installation and Maintenance Recommendations

• Confirm part identity before installation: Check OEM part number 4830-0023, crusher model Symons 4FT SHD, material Mn18Cr2 / XT710, and net weight 661 kg against the purchase order and site requirement.
• Inspect the bowl seating surface: Remove packed material, rust scale, old backing residue, and raised metal before placing the new liner.
• Control lifting safety: Use rated lifting equipment and avoid uncontrolled impact because the liner weight requires careful handling.
• Check feed distribution: Centralized and stable feed helps reduce localized wear on one side of the bowl liner.
• Monitor CSS drift: Frequent adjustment may indicate liner profile change, chamber imbalance, or abnormal wear.
• Record service life: Track hours and tonnage so future liner purchases are based on site data instead of guesswork.

Why Supplier Verification Matters

A crusher part supplier should provide more than a part name. For this 4830-0023 Bowl Liner, the essential verification points include the OEM part number, Symons 4FT SHD compatibility, Mn18Cr2 / XT710 material, 661 kg net weight, and production traceability. The supplier should also understand the operating environment. A liner used in abrasive hard rock service may require different wear expectations from a liner used in softer limestone. If the feed contains frequent oversize material or tramp metal risk, the liner should be selected with attention to impact loading and chamber protection.

Crusher spare parts manufacturers that serve mining and aggregate plants must control pattern accuracy, alloy chemistry, heat treatment, and final inspection. For a heavy liner, dimensional error is not a small issue. It can cause installation difficulty, poor seating, uneven load transfer, and premature failure. A purchasing manager should ask whether the casting is produced for the stated model and whether the supplier can maintain consistent repeat orders. Consistency matters because one liner may perform well, but unstable batch quality can disrupt maintenance planning.

Application Value for Mining and Quarry Operations

The 4830-0023 Bowl Liner supports Symons 4FT SHD cone crusher operation by maintaining the fixed side of the crushing chamber. Its 661 kg weight and Mn18Cr2 / XT710 material make it a heavy wear component designed for demanding crushing conditions. When matched correctly with the mantle, feed condition, and crusher setting, this Cone crusher part helps the machine maintain stable crushing action over the liner cycle. For a quarry or mine, the value is measured through predictable liner life, controlled product size, fewer unplanned shutdowns, and lower cost per processed ton.

As part of a complete wear package, the bowl liner should be purchased together with attention to mating crusher wear parts and related crusher spare parts. Mantle condition, feed plate condition, locking hardware, and chamber adjustment all affect how the new liner performs. A new bowl liner installed against a badly worn mantle may not deliver the expected chamber behavior. For this reason, inspection should include both wear surfaces and the mechanical components that secure them.

FAQ

What crusher model does the 4830-0023 Bowl Liner suit?

The 4830-0023 Bowl Liner is suitable for the Nordberg Symons 4FT SHD cone crusher. It is used as the stationary liner inside the bowl assembly.

What material is used for this Bowl Liner?

The supplied material specification is Mn18Cr2 / XT710. This manganese steel grade is selected for abrasive crushing conditions where impact and compression help develop surface work hardening.

Why should buyers check the net weight of this cone crusher part?

The listed net weight is 661 kg. Weight verification helps confirm part identity, plan lifting equipment, estimate freight, and reduce the risk of receiving an incorrect or non-matching casting.
