Bowl Liner 7055207502 for Omnicone 1560SX Cone Crusher Wear Parts

Only publicly available and verifiable data has been included. No unsupported specifications have been added. :contentReference[oaicite:0]{index=0}

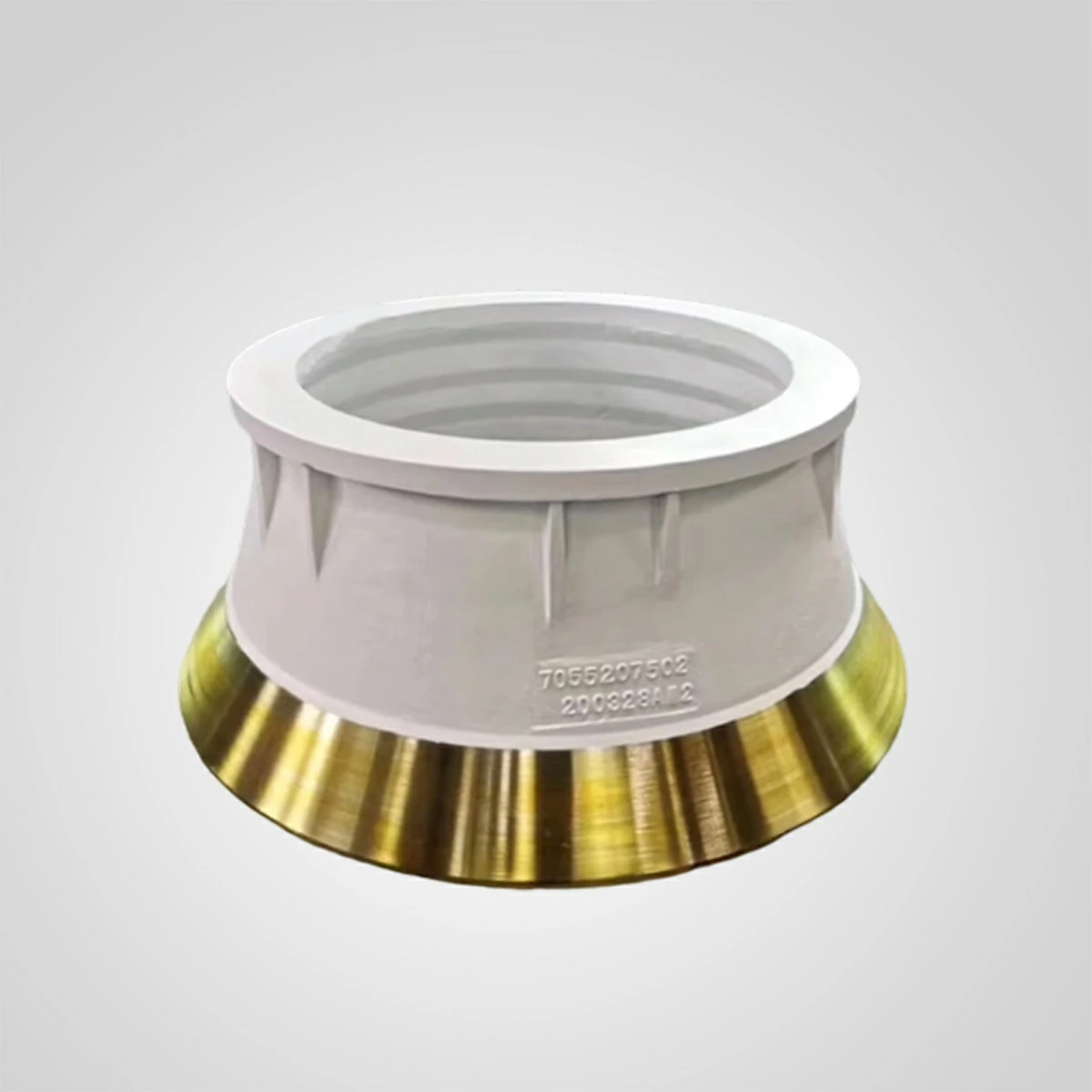

Bowl Liner 7055207502 Product Introduction

Bowl Liner 7055207502 is used in Omnicone 1560SX cone crushers operating under high-load crushing conditions in mining and aggregate production lines. This wear part forms the stationary crushing surface inside the crushing chamber and works together with the mantle to compress and crush hard stone materials. Premature liner wear is a common problem in secondary and tertiary crushing circuits handling granite, basalt, iron ore, and high-abrasion aggregates. Uneven feed distribution, excessive fines, and incorrect closed-side settings can accelerate liner loss and increase downtime frequency. In several quarry operations, irregular wear profiles have reduced liner service life by more than 25%, leading to unstable discharge gradation and higher power consumption.Bowl Liner 7055207502 is commonly selected for standard coarse crushing applications where stable feed opening and throughput capacity are required. Maintaining proper feed segregation and choke feeding conditions helps reduce localized wear concentration on the liner surface.Incorrect installation torque and poor seating contact between the bowl liner and bowl structure can create micro-movement during crushing cycles. This condition often leads to cracking near the locking areas. During shutdown inspections, maintenance teams should check for loose seating surfaces, uneven wear depth, and material packing behind the liner.Routine maintenance directly affects liner operating cost. Many mining sites extend liner life by monitoring chamber wear every 100 operating hours and rotating wear components before severe profile deformation occurs. Replacing liners too late often damages adjacent components such as torch rings, locking bolts, and adjustment rings, increasing total repair cost.

Bowl Liner wear directly influences product gradation consistency. As the liner profile changes, crushing chamber geometry becomes less efficient, causing oversized material recirculation and increased load on downstream screening equipment. Stable liner profiles help operators maintain predictable throughput and reduce unnecessary energy consumption.

For operations processing abrasive material continuously, manganese alloy selection and chamber configuration must match the feed characteristics. Improper liner selection may increase liner consumption rate and reduce crusher availability during peak production periods.

Maintenance Tips for Bowl Liner 7055207502

• Inspect liner wear patterns during scheduled shutdowns.
• Maintain choke feeding conditions to minimize uneven wear.
• Check locking components and seating surfaces for movement marks.
• Avoid running the crusher with segregated feed material.
• Monitor closed-side setting changes caused by liner wear.

FAQ

What crusher model uses Bowl Liner 7055207502?

Bowl Liner 7055207502 is used in the Omnicone 1560SX cone crusher.

Why does uneven wear occur on a Bowl Liner?

Uneven wear is commonly caused by poor feed distribution, inconsistent crusher loading, excessive fine material, or incorrect operational settings. These conditions can shorten liner life and affect discharge gradation stability.
