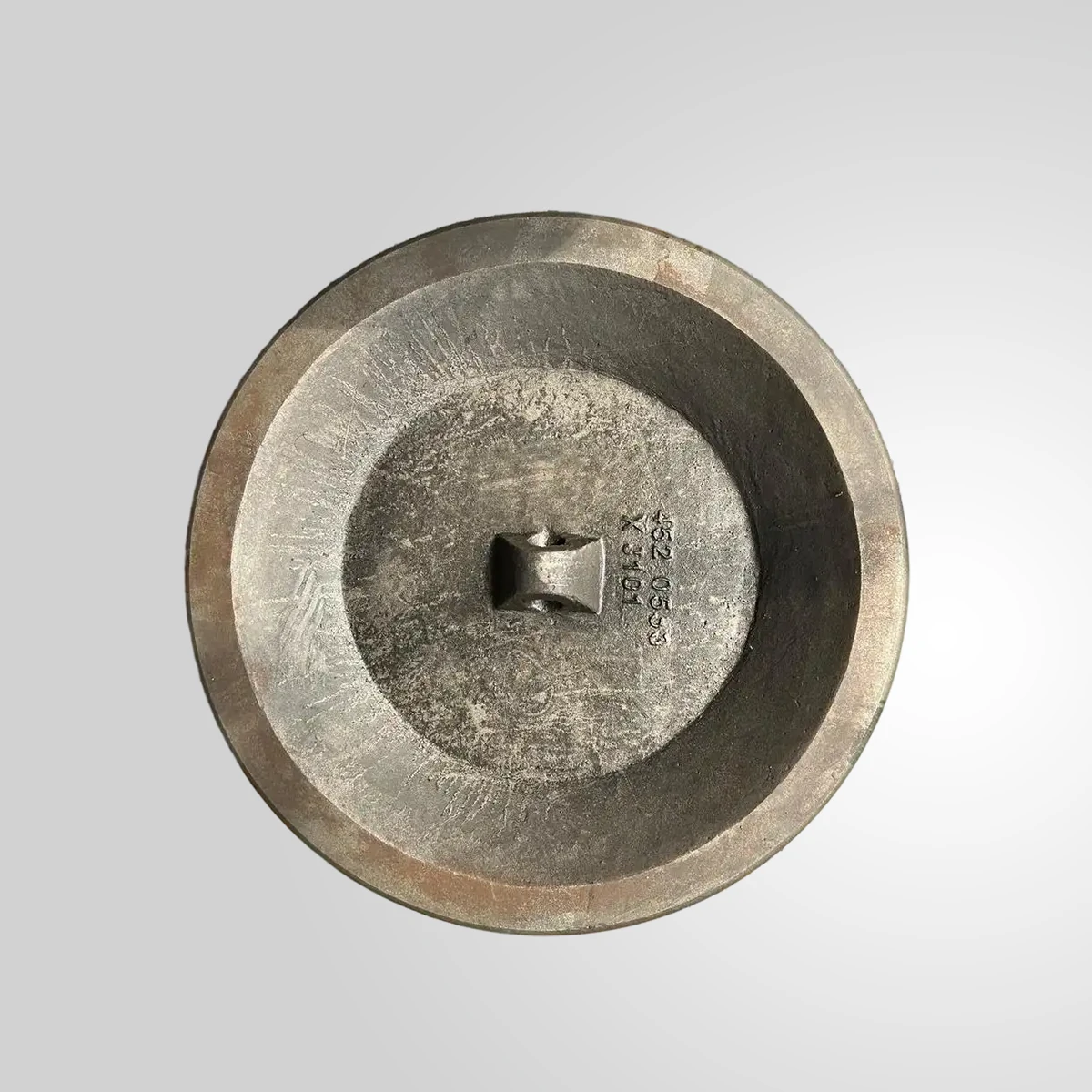

Spider Cap for Sandvik CH660 Cone Crusher | OEM Part 452.0533 Precision Casting

The 452.0533 Spider Cap engineered for the Sandvik CH660 (formerly H6800) cone crusher serves as the primary sacrificial shield for the main shaft assembly. Manufactured in Shenyang using advanced precision casting techniques, this component is designed to withstand the violent impact and high-velocity abrasion inherent in secondary and tertiary crushing stages. By utilizing high-grade Mn18Cr2 manganese steel, POWERUPS ensures that each spider cap maintains structural integrity under extreme compressive loads, protecting the critical main shaft nut and upper bearings from dust ingress and direct material impingement.

Engineering Integrity and Material Science

In the high-stress environment of a CH660 cone crusher, the spider cap is more than just a cover; it is a critical wear component that influences the longevity of the entire top shell assembly. Our 452.0533 units are cast using a proprietary metallurgy process that optimizes the balance between ductility and hardness. While the core remains tough to absorb shock loads from oversized feed, the surface quickly work-hardens during operation to exceed 500 HB. This metallurgical transition is essential for handling hard ores such as granite, basalt, and iron ore without brittle fracture.Each casting undergoes a rigorous annealing and quenching cycle to eliminate internal residual stresses. This prevents the “warping” or “cracking” often seen in lower-quality aftermarket parts. Furthermore, our adherence to AISI, ASTM, and DIN standards means that the chemical composition—particularly the Manganese-to-Carbon ratio—is strictly controlled to ensure predictable wear life and consistent fitment.

Precision Machining and Fitment Optimization

The interface between the Spider Cap 452.0533 and the spider crossbeam must be seamless to prevent vibration-induced wear. POWERUPS utilizes CNC vertical lathes to machine the mounting surfaces, ensuring that the dimensional tolerances align perfectly with the Sandvik CH660 specifications. A misaligned spider cap can lead to uneven material distribution in the crushing chamber, which ultimately causes localized wear on the mantles and bowls. Our precision casting process guarantees that the bolt holes and central alignment hub are accurately positioned, facilitating rapid installation during scheduled maintenance shutdowns.

Operational Reliability and Maintenance Reduction

Field data from mining operations in Australia and North America indicates that using a POWERUPS 452.0533 Spider Cap can extend the service interval of the top shell bushing by up to 15%. This is achieved through superior sealing against “fines” and dust. If a spider cap fails or wears through prematurely, the main shaft nut becomes exposed, leading to thread damage that can cost thousands of dollars in repairs and days of unplanned downtime.

Our spray-paint surface treatment isn’t just for aesthetics; it provides an essential layer of oxidation resistance during transit and storage in humid mine environments. Combined with CE and ISO 9001:2008 certification, our production line in Shenyang delivers a product that meets or exceeds the performance of original equipment manufacturer (OEM) standards at a significantly more competitive total cost of ownership.

Global Supply and Logistics Excellence

With an annual production capacity of 1000 pieces, we maintain a robust inventory of Sandvik series spares to support global mining projects. Every 452.0533 spider cap is shipped in a reinforced export-grade crate, secured to prevent movement during sea or air freight. Our documentation package includes material certificates (3.1 certs), heat treatment logs, and dimensional inspection reports, providing full traceability for your maintenance records.

Advanced Quality Control Protocols

To guarantee the safety and performance of our cast steel components, we implement a multi-stage quality gate system:

• Spectrographic Analysis: Verified chemical heat analysis before pouring to ensure carbon, manganese, and chrome levels are within 1% of the target specification.
• Ultrasonic Testing (UT): Conducted on 100% of the spider cap’s crown area to detect any subsurface porosities or inclusions that could lead to catastrophic failure under load.
• Magnetic Particle Inspection (MPI): Used on critical radius points to ensure the absence of surface hairline cracks following the quenching process.
• Dimensional Verification: Using 3D coordinate measuring machines (CMM) to verify that the 452.0533 geometry matches the original CH660 engineering blueprints.

By choosing the POWERUPS 452.0533 Spider Cap, site managers are investing in a component that has been refined through decades of feedback from the world’s most demanding quarries. It is an insurance policy for your Sandvik crusher, ensuring that the heart of your comminution circuit remains protected against the harshest elements.Whether you are operating a CH660 in a high-tonnage copper mine or a H6800 in a localized aggregate plant, our spider caps provide the structural reliability required to maintain peak throughput. High-manganese steel, precision manufacturing, and field-proven design converge to make this the industry standard for aftermarket crusher protection.
