Eccentric Bushing N15652258 | Metso HP Compatible Spare | C93800 Bronze

Eccentric Bushing N15652258 | Precision Engineered for HP Series Cone Crushers

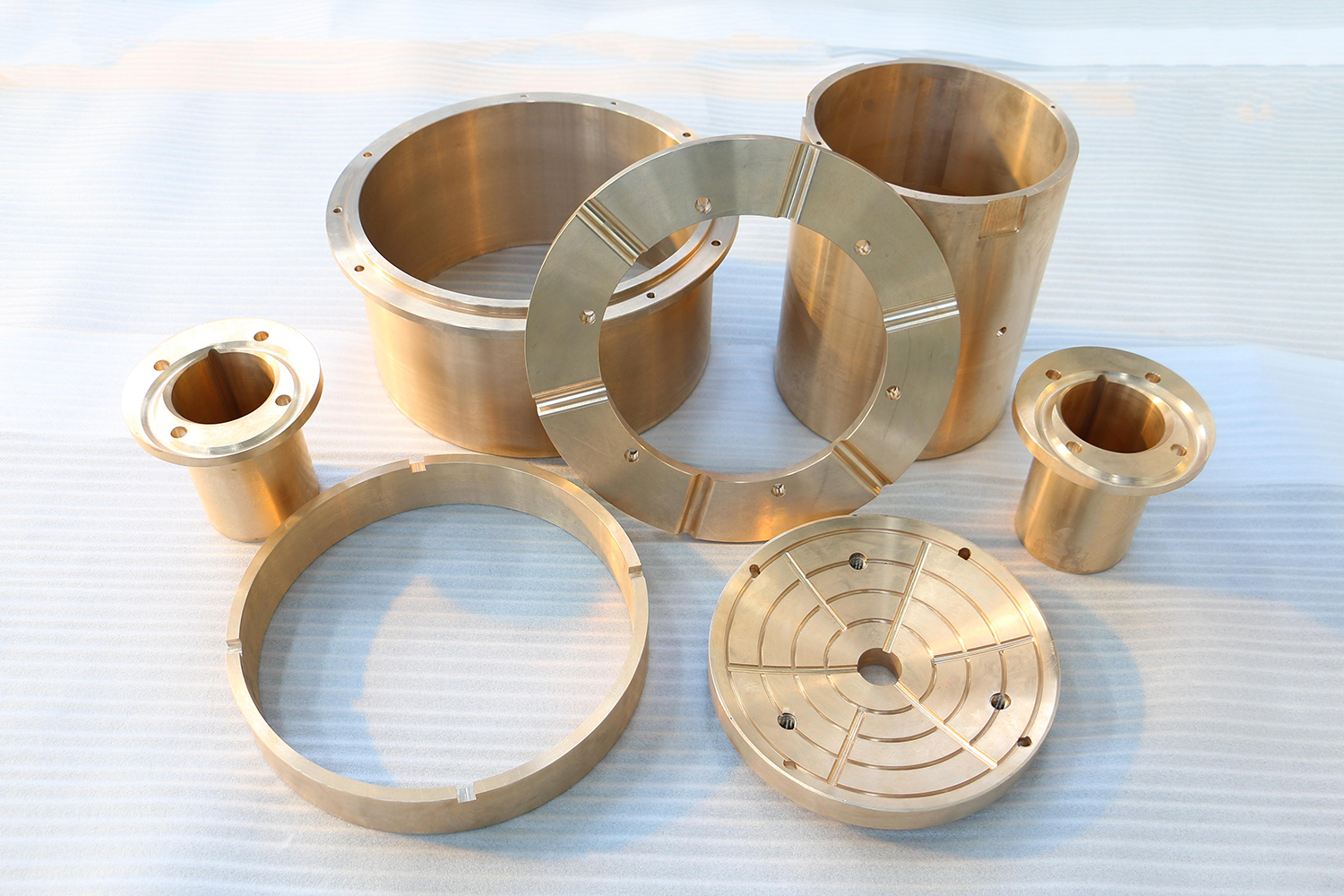

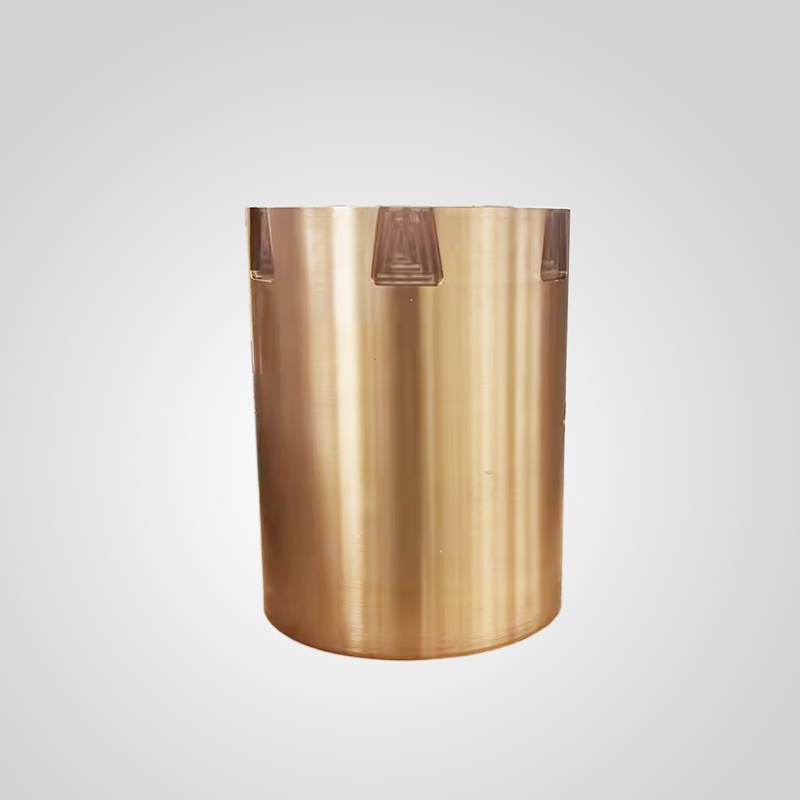

The Eccentric Bushing N15652258 is a critical hydrodynamic bearing component designed specifically for high-performance HP series cone crushers. Functioning as the primary interface between the stationary main shaft and the rotating eccentric assembly, this component must withstand extreme compressive loads and high-speed oscillation. Unlike structural crusher spares, this bushing acts as a sacrificial “mechanical fuse,” protecting the expensive main shaft from metal-to-metal contact during operation.

Our manufacturing process utilizes Centrifugal Casting rather than standard sand casting. This technique ensures a dense, non-porous grain structure, eliminating air pockets that can lead to premature structural failure under load. The material composition adheres strictly to UNS C93800 (SAE 67) High-Lead Tin Bronze standards, optimizing thermal conductivity and lubricity.

Technical Specifications & Material Analysis

Core Engineering Advantages

1. Centrifugal Casting for Homogeneity

Static sand casting often results in segregation where heavy lead particles sink to the bottom of the mold, creating uneven lubrication properties. Our N15652258 bushings are produced via centrifugal casting, which spins the mold at high speeds during solidification. This ensures a uniform distribution of lead globules throughout the copper matrix. The result is consistent friction management across the entire height of the bushing, significantly outperforming standard aftermarket wear parts.

2. Tribological Performance & “Lead Sweat”

The inclusion of 13-16% lead is not arbitrary. In events of temporary oil film rupture (e.g., pump lag or start-up), the frictional heat causes the microscopic lead particles to expand and smear across the steel journal surface. This phenomenon, known as “lead sweat,” creates a temporary solid lubricant film that prevents catastrophic seizing (welding) of the bushing to the main shaft, saving operators from replacing the entire main frame assembly.

3. CNC Precision & Stress Relief

Following the casting process, every bushing undergoes stress-relief annealing to stabilize the grain structure. Final machining is performed on 4-axis CNC turning centers to guarantee concentricity within 0.02mm. This precision is vital for maintaining a stable Closed Side Setting (CSS), which directly influences the wear rate of the cone crusher liner and the quality of the final aggregate product.

Field Diagnosis: When to Replace Your Eccentric Bushing

Proactive maintenance of crusher part suppliers inventory is key to avoiding downtime. Look for these indicators during routine inspections:

• Oil Analysis Spikes: A sudden increase in Copper (Cu) and Lead (Pb) levels in your oil analysis report indicates the hydrodynamic wedge has failed, and metal-to-metal contact is occurring.
• Filter Debris: The presence of gold-colored flakes in the return oil filter suggests the bushing is spalling or undergoing adhesive wear.
• Thermal Runaway: If the return oil temperature consistently exceeds 55°C (130°F) despite a functioning cooler, friction levels in the eccentric assembly are likely critical.
• Burn Marks: During physical inspection, dark discoloration or vertical scoring lines on the inner bore indicate the bushing has lost its geometry and must be replaced immediately.

Expert Installation & Break-in Advice

Note from the Engineering Desk: The N15652258 is a precision component. Do not use hammers or localized heat sources (torches) during installation, as this distorts the bore geometry. We recommend using dry ice (solid CO2) to shrink the bushing for interference fits. Once installed, a proper “break-in” cycle is mandatory. Run the crusher idle for at least 2 hours, monitoring oil temperature. This allows the bushing surface to “burnish” against the main shaft, establishing the mating profile required for long-term operation.

Frequently Asked Questions (FAQ)

Q1: Can this bushing be used with both standard and short-head cone crusher configurations?
Yes, the N15652258 fits specific HP series frames regardless of the cavity configuration (Standard/Short Head). However, always verify your specific crusher’s parts manual, as generation updates (e.g., HP300 vs HP300i) may have slight dimensional variances.

Q2: Why is this bushing made of Bronze instead of Steel like the main shaft?
In tribology, bearing surfaces must differ in hardness. We use C93800 bronze because it is softer than the steel main shaft. If debris enters the oil, the bronze allows the particle to embed itself into the bushing wall (embeddability) rather than scoring the expensive steel shaft. Using a steel bushing would lead to immediate catastrophic seizure.

Q3: What is the expected lifespan of this eccentric bushing?
Under ideal conditions with clean oil (ISO 4406 17/15/12 or better) and proper operating temperatures, the bushing should last 4,000 to 6,000 hours. However, dirty oil, frequent start/stops under load, or operating with a worn cone crusher liner causing ring bounce can reduce this life by 50%.
