The operational heartbeat of any high-performance crushing circuit relies on the microscopic tolerances between the eccentric shaft and its housing. In the harsh environment of a quarry or mine, the taper bushing serves as the critical interface that manages massive radial and axial loads. A failed cone crusher part in the internal assembly is not merely a mechanical glitch; it is an indicator of systemic maintenance failure that can lead to catastrophic main shaft seizure. After twenty years of diagnosing equipment in remote sites, I have observed that the difference between a bushing that lasts 8,000 hours and one that fails at 800 hours is found in the precision of the maintenance protocol. Every cone crusher part within the eccentric assembly must operate within a hydrodynamic lubrication regime. This means the metal surfaces of the bushing and the shaft never actually touch during operation; they are separated by a pressurized film of oil. When this film breaks down due to contamination, improper clearances, or thermal runaway, the resulting friction creates localized welding points, leading to the rapid destruction of these high-value cone crusher spare parts. This guide focuses on the technical variables that preserve that oil film and ensure long-term mechanical reliability.
Advanced Diagnostics: Inspection Beyond the Surface
Routine inspection of the taper bushing must go beyond a simple visual check for scratches. Field engineers should utilize ultrasonic testing or dye penetrant inspection (DPI) to look for fatigue cracks in the bronze matrix, especially around the lubrication grooves. These grooves are engineered to distribute oil evenly, but they also act as stress concentrators. If a crack propagates from a groove, the structural integrity of the entire cone crusher part is compromised. Measuring the internal diameter (ID) of the bushing at multiple points is mandatory. We typically use a telescopic gauge and an outside micrometer to check for “bell-mouthing” or ovality. For a standard 1300-series crusher, an ovality exceeding 0.15 mm indicates that the eccentric motion is becoming erratic. This irregularity puts uneven pressure on the cone crusher wear parts, specifically the mantle and concave, causing uneven wear patterns and increasing the risk of “ring bounce” during the crushing cycle. Documentation of these measurements allows for a predictive wear curve, ensuring you order your cone crusher spare parts before an emergency shutdown occurs.
Maintaining Component Cleanliness in Sub-Micron Environments
The primary enemy of a precision cone crusher part is fine particulate matter. While these machines are designed to crush rock, the internal bushings are machined to tolerances that can be compromised by dust as small as 15 microns. Contamination usually enters through failed dust seals or during improper oil filter changes. When rock dust mixes with ISO VG 150 lubrication oil, it creates a grinding paste that accelerates the wear of every cone crusher wear parts surface. We implement a strict 250-hour oil analysis program. We look for elevated levels of copper, lead, and tin—the primary elements in high-grade lead-bronze bushings. A sudden spike in copper (e.g., from 15 ppm to 80 ppm) is an early warning that the bushing is “shedding” material. Cleaning the bushing housing requires lint-free rags and high-pressure air. Using standard workshop rags can leave behind fibers that block the internal oil galleries of the cone crusher part, leading to localized hot spots and eventual seizure.
Lubrication Dynamics and Thermal Management
Lubrication is not just about reducing friction; it is the primary method of heat removal from the bushing interface. A typical large-scale cone crusher requires an oil flow rate of approximately 120 to 150 liters per minute to maintain an optimal temperature differential between the tank and the return line. If the temperature of the return oil exceeds 55 °C, the viscosity of the oil drops, and the film strength becomes insufficient to support the eccentric load. This is often when a cone crusher spare parts failure begins.Engineers must ensure that the oil pressure is maintained within the OEM specified range, usually between 0.15 MPa and 0.25 MPa. Low pressure indicates a pump failure or a leak, while high pressure often indicates a blockage in the internal passages of the cone crusher part. Furthermore, the choice of lubricant must match the ambient temperature. In cold climates, a synthetic oil with a high viscosity index (VI) is preferred to ensure flow at startup, preventing “dry starts” that score the bushing surface.
The Science of Clearance Adjustment
Adjusting the gap between the bushing and the shaft is the most technical task a maintenance team will perform. If the clearance is too tight (less than 0.3 mm on many mid-sized units), there is no room for the oil film to form, and thermal expansion will cause the bushing to “grab” the shaft. If the clearance is too loose (exceeding 1.2 mm), the eccentric shaft will “slap” against the bushing, creating impact loads that can crack the outer eccentric housing, a much more expensive cone crusher part to replace.The “lead wire” test is the industry standard for checking these clearances. By placing small strips of lead on the shaft and rotating it, the resulting thickness of the flattened lead provides a precise map of the internal geometry. This data tells us if the bushing is sitting square in the frame. If the clearance is uneven, it suggests that the frame itself may be warped or that a previously installed cone crusher spare parts component was not seated correctly. Precision here directly translates to a lower cost-per-ton of crushed material.
Operational Precautions and Field Safety
When performing maintenance on an internal cone crusher part, safety protocols must account for the stored energy in the hydraulic systems and the weight of the components. A bushing for a large machine can weigh several hundred kilograms; using uncertified lifting eyes is a common cause of site accidents. All lifting equipment must be rated for the specific weight of the cone crusher spare parts being handled.
Furthermore, following the manufacturer’s torque specifications for the mounting bolts is non-negotiable. Over-tightening can deform the bushing, while under-tightening leads to vibration and fretting. Fretting is a specific type of wear where the outer surface of the cone crusher part rubs against the housing, creating a fine red oxide powder. Once fretting starts, the fit is lost, and the housing may need to be line-bored—a repair that can cost five times as much as a standard bushing replacement.
The Maintenance Matrix: Inspection Intervals
| Maintenance Task | Interval (Hours) | Technical Parameter | Associated Component |
|---|---|---|---|
| Lubrication Oil Analysis | 250 | Spectrochemical Cu/Sn levels | Internal cone crusher part |
| Filter Element Inspection | 500 | Micron rating check (20μm) | Lube system |
| Bushing Clearance Measurement | 2,000 | Tolerance < 1.0 mm | Cone crusher spare parts |
| Dust Seal Integrity Check | Shiftly | Visual leak detection | Cone crusher wear parts |
| Oil Cooler Thermal Delta | 1,000 | Inlet/Outlet Temp > 8 °C | Cooling circuit |
Data-Driven Maintenance and Training
Modern mineral processing is increasingly reliant on Telematics. By monitoring the motor amperage and the oil temperature in real-time, we can detect a failing cone crusher part before the operator even notices a change in the product gradation. A steady increase in motor current, combined with a 5 °C rise in oil return temperature, is a classic signature of a bushing beginning to seize. Training your staff to recognize these digital signatures is as important as teaching them how to use a wrench. Creating a detailed maintenance log is the foundation of E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) in a workshop environment. Each entry should include the date, the specific measurements of the cone crusher spare parts, the brand of lubricant used, and the ambient conditions. This history allows for “root cause failure analysis” (RCFA). If a bushing fails prematurely, we can look back at the log and determine if the feed material was too hard, if the oil was contaminated, or if the cone crusher wear parts were allowed to wear beyond their limits, putting excessive strain on the internal bushings.
Integrating Wear Parts and Bushing Health

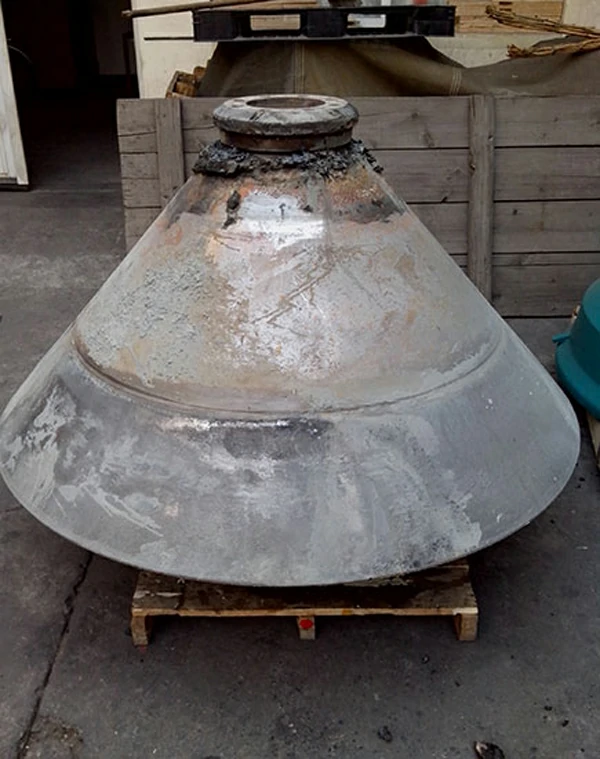

There is a direct correlation between the condition of the liners and the longevity of the internal bushing. When cone crusher wear parts reach the end of their service life, they often lose their original profile. This leads to “pancaking” of the material in the crushing chamber, which generates massive vertical forces. These forces are transmitted directly through the mantle and into the taper bushing. Therefore, replacing your liners on time is one of the best ways to protect the most expensive internal cone crusher part from premature failure. In conclusion, the maintenance of the taper bushing is a balance of lubrication science, thermal management, and precision measurement. By treating every cone crusher spare parts installation with the rigor of a high-end automotive engine rebuild, you ensure that your equipment remains productive, safe, and cost-effective. The goal is zero unplanned downtime, and that goal is achieved through the disciplined application of these engineering principles.
