High Precision Upper Thrust Bearing 98000224 Specifications: ABEC 7 Tolerances for Extreme Vertical Loads
OEM Part Number: Ht-N98000224 (Model: 98000224)
Component Classification: Cylindrical Roller Thrust Bearing (Upper Axial Assembly)
Base Metallurgy (Races & Rollers): AISI 52100 (100Cr6) Vacuum-Degassed High-Carbon Chromium Steel
Through-Hardness: 60 – 64 HRC
Dimensional Precision Grade :ISO P4 / ABEC 7
Surface Finish (Raceways) :CNC Ground and Honed to Ra 0.2 μm
Technical Specifications: High Precision Upper Thrust Bearing Ht-N98000224
| Technical Parameter | Engineering Specification |
|---|---|
| OEM Part Number | Ht-N98000224 (Model: 98000224) |
| Component Classification | Cylindrical Roller Thrust Bearing (Upper Axial Assembly) |
| Base Metallurgy (Races & Rollers) | AISI 52100 (100Cr6) Vacuum-Degassed High-Carbon Chromium Steel |
| Through-Hardness | 60 – 64 HRC |
| Dimensional Precision Grade | ISO P4 / ABEC 7 |
| Surface Finish (Raceways) | CNC Ground and Honed to Ra 0.2 μm |
| Basic Static Load Rating (C0) | 4800 kN |
| Basic Dynamic Load Rating (C) | 1450 kN |
| Cage Material | Machined Brass (M-Type) for High-Speed Boundary Lubrication |
| Maximum Operating Temperature | 150°C (Requires ISO VG 150/220 EP Circulating Oil) |
Neutralizing Extreme Axial Loads in Secondary Crushing Circuits
While maintenance teams vigilantly monitor primary jaw crusher components to prevent main frame fatigue, the silent and catastrophic failure of an upper thrust bearing in a secondary circuit often catches operations off guard. When a heavy-duty cone crusher operates under maximum closed-side settings (CSS), the vertical axial force generated by fracturing hard rock is driven directly upward through the main shaft. The High Precision Upper Thrust Bearing Ht-N98000224 is engineered specifically to intercept and neutralize this multi-ton vertical kinetic energy.
If an operation installs a standard commercial bearing with inferior load ratings into the upper thrust position, intense cyclical shock loads will pierce the hydrodynamic oil film. This metal-to-metal contact causes immediate micro-welding and spalling on the bearing races. Once the raceway geometry is compromised, the main shaft drops by fractions of a millimeter, completely altering the crushing chamber profile and severely accelerating wear on the bronze eccentric bushings. The 98000224 bearing eliminates this cascade failure through massive structural capacity, boasting a static load rating of 4800 kN to keep the shaft perfectly suspended regardless of ore hardness.

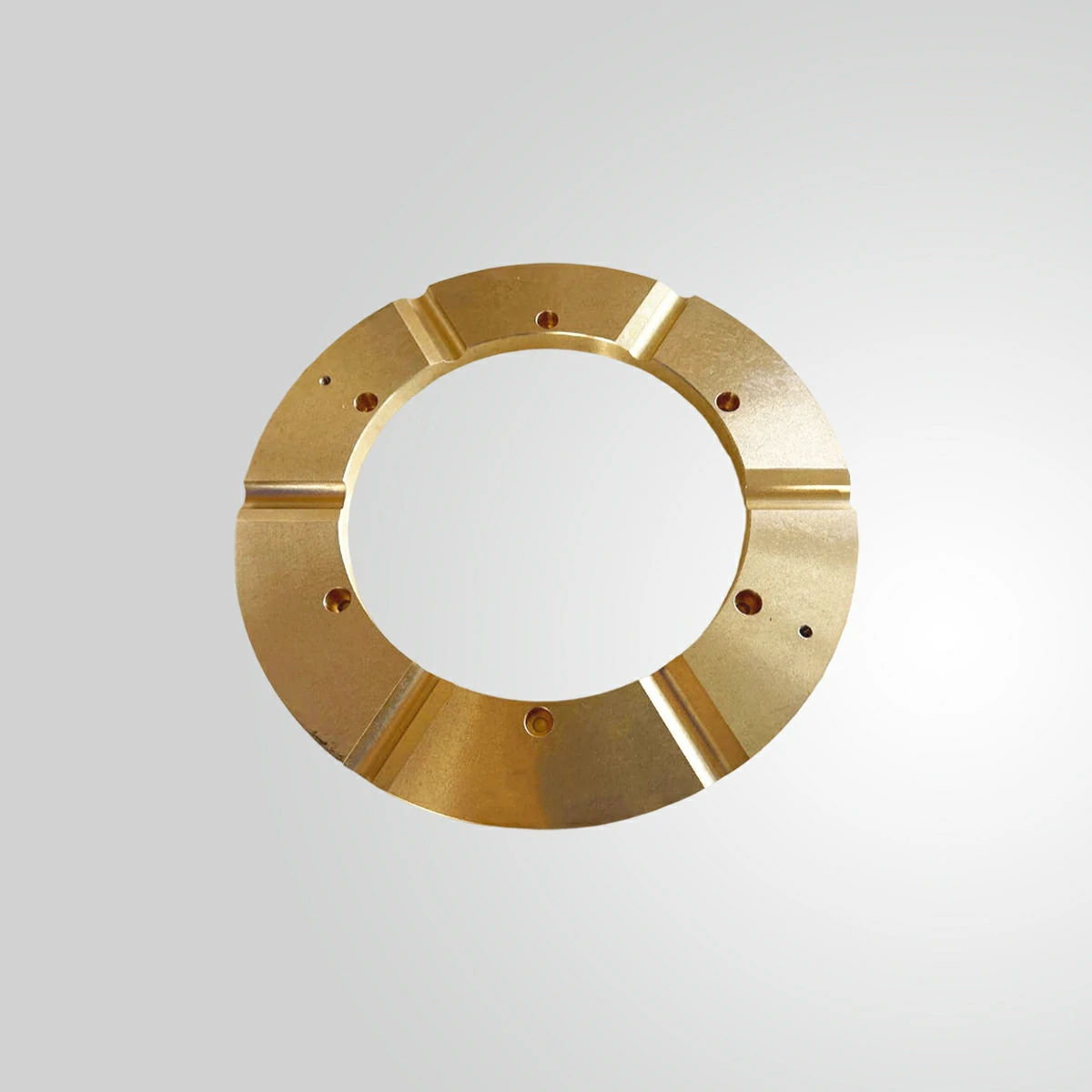

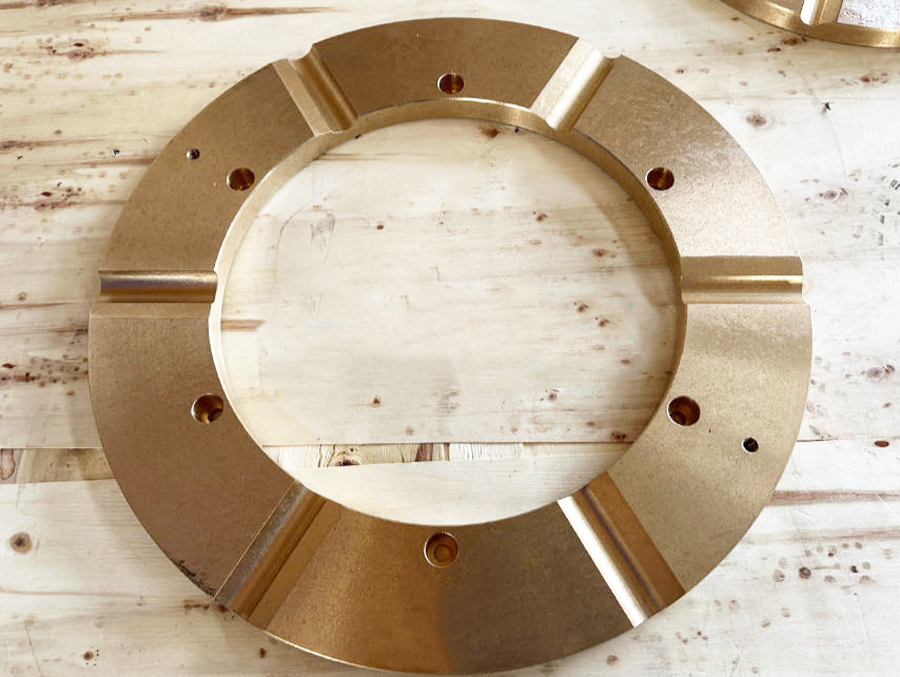

Upper Thrust Bearing
Metallurgical Purity: Vacuum-Degassed AISI 52100 Bearing Steel
The fatigue life of a thrust bearing under heavy axial compression is dictated almost entirely by the microscopic purity of its steel. The High Precision Upper Thrust Bearing Ht-N98000224 is manufactured exclusively from AISI 52100 (100Cr6) high-carbon chromium bearing steel. More importantly, this steel undergoes a rigorous vacuum degassing process before being forged into the bearing races and cylindrical rollers.
Standard atmospheric steel casting traps non-metallic inclusions, such as oxygen and sulfur compounds, within the crystalline matrix. Under the immense 4800 kN pressure generated during a tramp iron event, these microscopic inclusions act as subsurface stress risers. Fatigue cracks initiate at these exact inclusion points and propagate upward, resulting in large chunks of steel flaking off the raceway. By utilizing vacuum-degassed metallurgy, the 98000224 eliminates these internal voids. Following precise heat treatment, the entire bearing assembly achieves a uniform through-hardness of 60 to 64 HRC, providing the ideal balance of wear resistance against rolling friction and internal toughness to survive severe vertical shock loads.
ISO P4 (ABEC 7) Micro-Tolerances and Kinematic Alignment
A thrust bearing is only effective if the axial load is distributed equally across every single cylindrical roller simultaneously. The Ht-N98000224 bearing achieves this through extreme dimensional control, manufactured to ISO P4 (ABEC 7) precision standards. At this level of machining, the variance in diameter between adjacent rollers is kept to less than 2 microns.
If an aftermarket bearing lacks this precision, the axial load forces itself onto the three or four largest rollers in the cage. This localized overloading instantly exceeds the yield strength of those specific rollers, causing them to fracture. The broken steel fragments then circulate through the brass cage, destroying the entire assembly in minutes. The exact geometrical uniformity of the 98000224 ensures true coaxial alignment. Furthermore, the raceways are CNC honed to an Ra 0.2 μm mirror finish, minimizing rolling resistance and drastically reducing the thermal footprint of the bearing during high-RPM gyration.
Pro-Tip from the Field: When installing the 98000224 thrust bearing, meticulously inspect the upper housing seat for any signs of fretting or microscopic concavity using a precision straight-edge and bluing paste. If the housing seat has warped even 0.05 mm from previous bearing failures, the new precision bearing will flex under load to conform to that warped shape. Never install a high-precision ABEC 7 bearing into a deformed housing; you must machine the seat perfectly flat first, or the bearing will suffer premature raceway fatigue within the first 300 hours of operation.
Tribology and Machined Brass Cage Dynamics
Heavy axial loads combined with rotational speed demand highly specific lubrication management. The 98000224 utilizes a heavy-duty, CNC-machined brass cage rather than a stamped steel alternative. In boundary lubrication scenarios—such as cold startups or temporary drops in oil pressure—the brass cage provides a self-lubricating, low-friction interface against the steel rollers. This prevents the instantaneous cage seizure and roller skidding that destroys stamped steel cages.
To maximize the lifespan of this component, operations must maintain an uninterrupted flow of ISO VG 150 or 220 Extreme Pressure (EP) lubricating oil. The EP additives form a sacrificial chemical film on the Ra 0.2 μm raceways, preventing the asperities of the steel surfaces from cold-welding under peak compressive spikes. Proper oil viscosity, combined with the precision brass cage, ensures the bearing operates well below its 150°C maximum thermal limit.
Total Cost of Ownership and Asset Reliability
Just as deploying dimensionally accurate jaw crusher parts ensures proper primary nip angles, investing in OEM-spec cone crusher parts like the Ht-N98000224 bearing ensures the mechanical stability of the secondary circuit. Procurement strategies that source lower-precision commercial bearings for the upper thrust position inevitably lead to unpredictable shaft drop, ruined eccentric bushings, and catastrophic unplanned plant outages.
The High Precision Upper Thrust Bearing Ht-N98000224 is not merely a consumable; it is the primary mechanical defense against axial kinetic energy. By standardizing on vacuum-degassed AISI 52100 steel and ABEC 7 machining tolerances, maintenance planners lock in a highly predictable wear lifecycle. This engineering precision safeguards the surrounding high-value drive components, maximizing equipment availability and driving down the true operational cost per ton.
All manufacturer names, part numbers, model numbers, and descriptions are used for reference and identification purposes only, they are owned by the respective machine manufacturer, including but not limited to FLSmidth®, Metso®, thyssenkrupp®, and Sandvik®. All parts supplied are manufactured and warranted by yonsmen and are not manufactured by or purchased from the Original Equipment Manufacturer. yonsmen has no association with the OEM and does not intend to give this impression.
