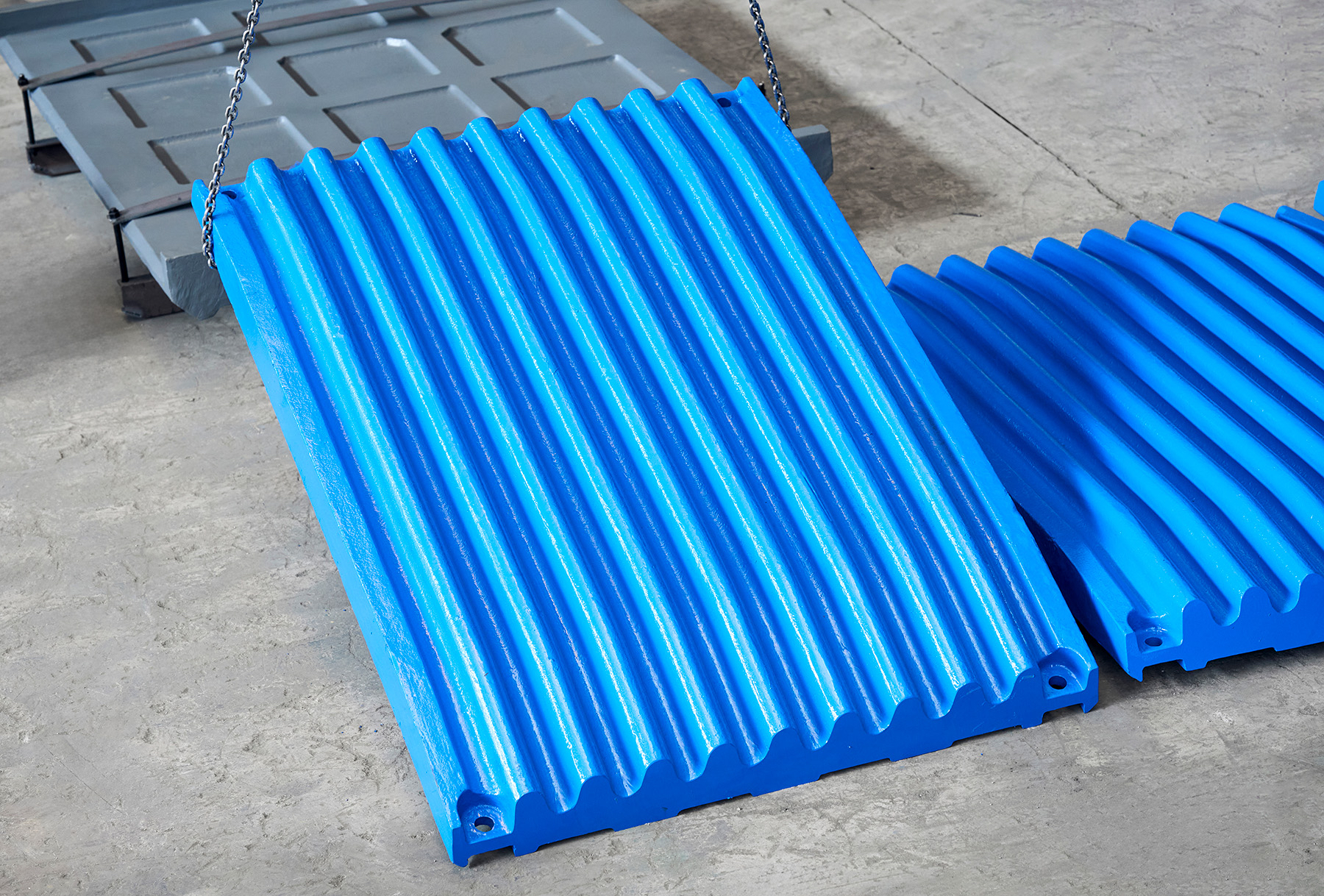

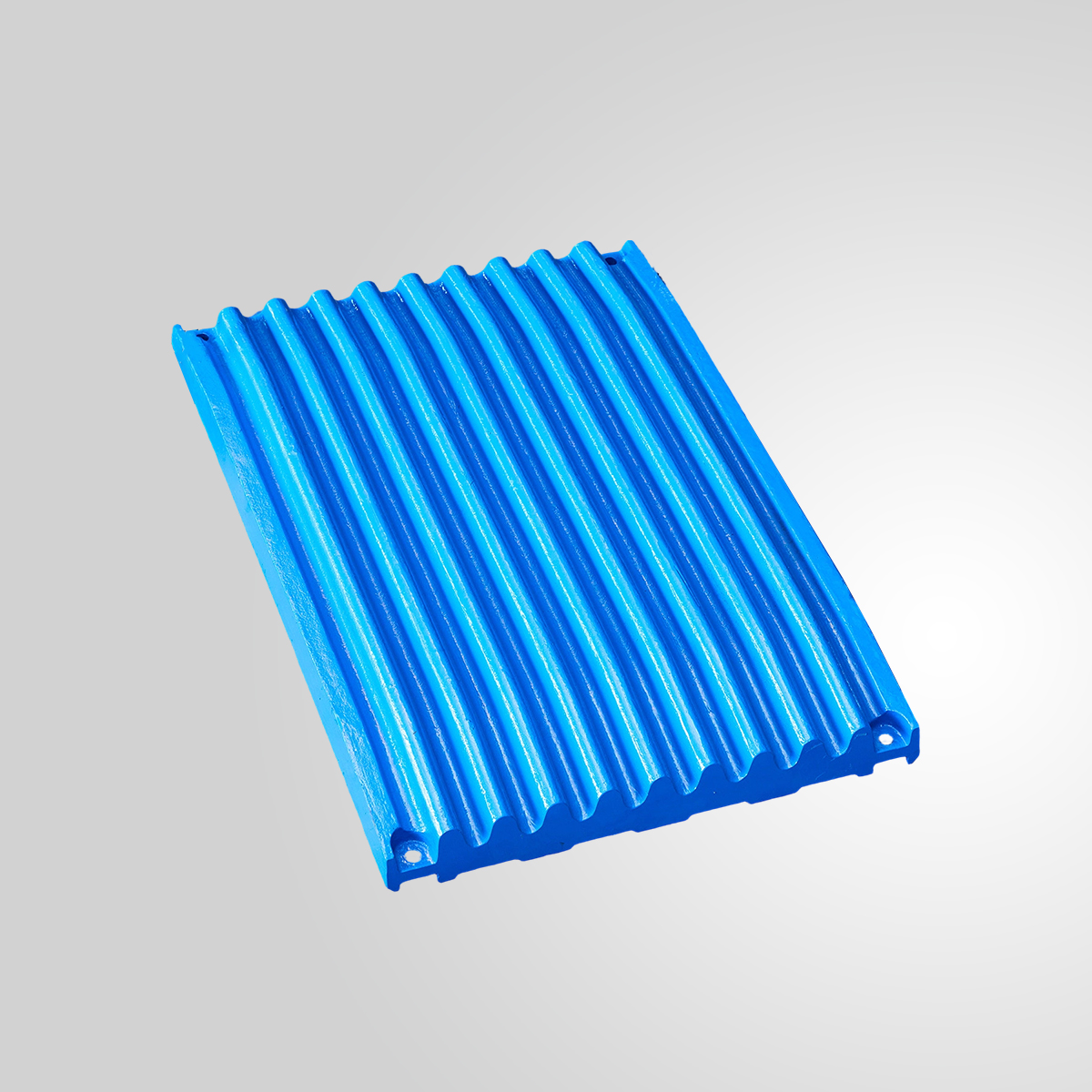

Metso C63 Jaw Crusher parts 814320042600 JAW, MOVABLE 399kg

Detailed Introduction

Accelerated wear at the primary crushing stage directly compromises the production capacity of the entire quarrying circuit. The Metso C63 Jaw Crusher parts 814320042600 JAW, MOVABLE 399kg is engineered to resolve the common engineering bottleneck of premature liner thinning when processing high-abrasion materials such as silica-rich granite or basalt. By utilizing a specific metallurgical matrix that work-hardens under impact, this movable jaw ensures consistent aggregate sizing and prevents the loss of the engineered nip angle, which is the primary cause of material “slipping” and reduced volumetric throughput in the C63 chamber.

The structural integrity of the 814320042600 movable jaw is rooted in its high-manganese Mn18Cr2 austenitic steel composition. Unlike standard carbon steels that become brittle under high-compressive stress, Mn18Cr2 undergoes a molecular transformation during the crushing process. As the 399kg mass repeatedly impacts the feed material, the surface hardness increases from an initial HB 220 to a peak of HB 550, creating a diamond-hard wear face while maintaining a tough, ductile core. This unique characteristic allows the liner to absorb violent mechanical shocks from uncrushable tramp iron without fracturing, effectively shielding the expensive pitman assembly from localized stress concentrations.

Precision machining of the mounting surface is critical for preventing the “wiping” of the pitman seating face. The back of the 814320042600 is ground to a surface finish of Ra 6.3 micrometers with a strict flatness tolerance of less than 1.5 mm across the entire contact plane. Any deviation in flatness creates microscopic air gaps between the jaw plate and the pitman. Under the multi-ton crushing forces of the C63, these gaps lead to liner flexing, which rapidly causes fatigue cracking in the liner and severe fretting corrosion on the pitman. By ensuring a 90 percent minimum contact area, this jaw plate stabilizes the internal kinematics of the crusher and extends the life of the secondary Crusher Wear Parts by delivering a more consistent feed curve.

Thermal management within the crushing chamber is handled through the material’s specific heat dissipation properties. The Mn18Cr2 alloy is solution-annealed at 1050 degrees Celsius followed by a rapid water quench to ensure a completely austenitic structure. This process eliminates the formation of brittle carbides at the grain boundaries, which are the primary failure points in substandard aftermarket castings. Sourcing from a verified Crusher Parts Manufacturer ensures that the 399kg casting has undergone 100 percent ultrasonic testing (UT) and magnetic particle inspection (MPI) to identify subsurface voids. Hidden casting defects in the movable jaw act as fracture initiation points that can lead to a catastrophic “snap” during the processing of large run-of-mine (ROM) feed.

The tooth profile of the 814320042600 is mathematically optimized for the C63’s stroke length. Sharp, precision-cast teeth facilitate a “nipping” action rather than a “grinding” action, which significantly lowers the amperage draw on the main drive motor. When teeth become rounded, the crusher requires higher hydraulic pressure and more electrical energy to achieve the same reduction ratio. By maintaining a sharp profile for a longer duration, this jaw plate reduces the overall cost-per-ton of the operation and prevents the slabby product shape that often results from worn liners, protecting the downstream cone crushers from handling oversized, problematic material.

Furthermore, the 814320042600 movable jaw acts as a primary defensive component for the main frame. Its precise fitment ensures that the crushing force is distributed evenly across the eccentric shaft and the spherical roller bearings. Uneven loading, caused by an out-of-tolerance jaw plate, induces harmonic vibrations that can lead to premature bearing cage failure. By integrating these specific Metso C63 Jaw crusher parts into your scheduled maintenance interval, you maintain the factory-specified closed side setting (CSS) accuracy. This sustained geometric precision results in a higher percentage of “on-spec” product in the first pass, drastically reducing the recirculating load and increasing the total lifespan of the entire primary crushing station.

Ultimately, the reliability of the primary circuit depends on the predictable wear of its contact liners. Replacing a worn jaw with the 814320042600 model resets the machine’s efficiency. This proactive replacement strategy prevents a cascade of mechanical failures, including:

• Pitman surface deformation due to uneven loading from thinned or warped liners.
• Main frame cracking caused by the excessive vibration of a “slipping” crushing action.
• Premature wear of the toggle plate and toggle seats due to inconsistent jaw movement.

Securing your production with exact-specification jaw crusher parts ensures that every ton of rock processed contributes to your bottom line rather than your maintenance budget. The 814320042600 movable jaw is not merely a wear item; it is a calibrated engineering component designed to survive the most aggressive primary reduction environments in the world.
