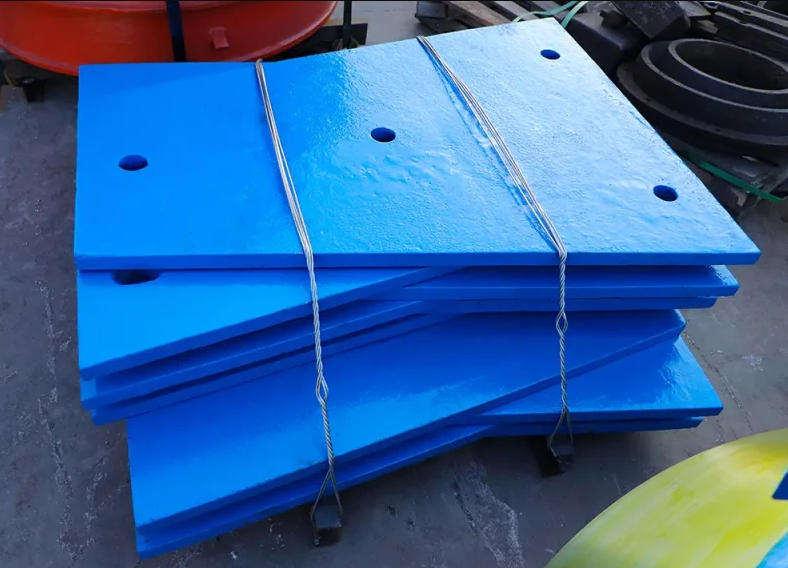

Sandvik CJ612 JM1211 Jaw Crusher 402.4635-01 cheek plate, lower 267.75kg

Technical Specifications: Sandvik CJ612 JM1211 402.4635-01 Lower Cheek Plate

Overcoming Extreme Compression in the CJ612 Discharge Zone

The lower crushing chamber of a Sandvik CJ612 jaw crusher represents the most hostile tribological environment within the primary reduction circuit. As fractured ore descends toward the Closed Side Setting (CSS), the volumetric space drastically reduces, while the compressive pressure exerted by the pitman reaches its maximum peak. The lateral expansion of this highly compacted rock mass generates intense, continuous gouging forces against the lower structural side frames. The 402.4635-01 lower cheek plate is specifically deployed to intercept this extreme localized pressure.

Operating a primary crusher without strictly monitored lower cheek plates inevitably leads to catastrophic main frame erosion. In the lower chamber, the sliding velocity of the ore is highest just before discharge, accelerating abrasive wear exponentially compared to the upper chamber. By utilizing a highly specific 267.75kg mass of alloyed steel, this lower cheek plate acts as a renewable armor shield. When maintenance teams utilize dimensionally accurate jaw crusher parts, they ensure the continuous flow of high-silica rock is channeled efficiently through the discharge opening, entirely isolating the permanent machined frame from the abrasive media.

Phase Transformation Mechanics of Mn13Cr2 Metallurgy

The survival of the 402.4635-01 lower cheek plate dictates the mechanical availability of the crusher, which requires precise metallurgical formulation. Cast from Mn13Cr2—an austenitic manganese steel matrix reinforced with 2% chromium—this 267.75kg component relies on a dynamic microstructural phase transformation to resist destruction. Upon emerging from the foundry’s water toughening process (rapidly quenched from temperatures exceeding 1050°C), the casting exhibits an initial hardness of 220 to 240 HBW. This relatively low initial hardness is an intentional engineering requirement; it provides the casting with a yield strength greater than 380 MPa and exceptional internal ductility, allowing the heavy plate to absorb massive shock loads from uncrushable tramp metal without fracturing.

As abrasive rock fragments are crushed against the plate at the CSS, the severe compressive impact triggers an immediate metallurgical reaction at the surface layer. The localized mechanical stress converts the soft austenite into an extremely hard martensitic structure, elevating the surface hardness to approximately 500 HBW. The 2% chromium addition is critical in this lower chamber application; it stabilizes the matrix, accelerates the work-hardening rate, and prevents the plastic deformation that causes lower-grade alloys to “mushroom” and bind against the moving jaw. The structural integrity of premium jaw crusher parts relies heavily on this continuous self-hardening mechanism, where microscopic surface wear constantly exposes fresh alloy that instantly hardens upon impact.

Dimensional Precision and the Eradication of Fines Packing

A lower cheek plate is subjected to immense downward frictional drag as the elliptical motion of the pitman forces compacted material toward the discharge belt. If the 402.4635-01 plate is not cast and machined to exact ISO 2768-mK flatness tolerances, microscopic gaps will exist between the rear face of the cheek plate and the CJ612 side frame. In the high-pressure lower chamber, these gaps are immediately penetrated by abrasive silica fines.

Rock fines packing behind a lower cheek plate create a hydraulic wedge effect. As more fines are forced behind the plate during each crushing cycle, the immense pressure pushes the 267.75kg casting outward, applying extreme tensile stress directly onto the M30 mounting bolts. This outward deflection alters the geometry of the crushing chamber, increases friction against the moving jaw die, and ultimately leads to bolt fatigue and fastener decapitation. Precision machining of the rear mounting face guarantees 100% surface contact, transferring the violent crushing forces directly into the heavy steel frame and neutralizing the risk of fines packing.

Managing Shear Stress on Countersunk Fasteners

The downward velocity of the rock in the discharge zone constantly attempts to strip the lower cheek plate from the frame. The 402.4635-01 cheek plate counters this sheer force through deep, precision-angled countersinks designed to entirely encapsulate the M30 bolt heads. If the countersink angles deviate by even a fraction of a degree, the high-tensile bolt heads will protrude past the wear surface.

Protruding bolt heads in the lower chamber are sheared completely flat by descending rock within a single operational shift. Once the mechanical fastener is compromised, the massive 267.75kg plate is held in place purely by friction. When that friction breaks, the plate collapses into the discharge opening, frequently resulting in a torn main conveyor belt or devastating damage to the secondary cone crusher downstream. Strict adherence to casting tolerances in the countersink zones is what keeps the fasteners protected beneath the hardened martensitic surface for the entire lifecycle of the liner.

Total Cost of Ownership and Preventative Wear Profiling

Procurement strategies that prioritize initial purchase price over metallurgical accuracy routinely trigger cascading maintenance costs. A lower cheek plate cast with excessive porosity or improper cooling rates will experience localized spalling—where chunks of un-hardened metal flake off, exposing the mounting hardware and the frame simultaneously. Repairing a gouged Sandvik CJ612 main frame requires deploying field machining teams, executing complex line-boring, and halting production for days.

By standardizing on heavily verified Crusher Wear Parts, mine operators lock in a predictable cost per ton. The exact metallurgical chemistry of the 402.4635-01 ensures a linear, forecastable wear rate that allows reliability engineers to track plate thickness via ultrasonic testing accurately. Once the plate wears to 30% of its original cross-section, replacement can be safely scheduled during routine maintenance shutdowns, avoiding emergency mid-shift failures and maximizing the financial return on the crushing asset.
