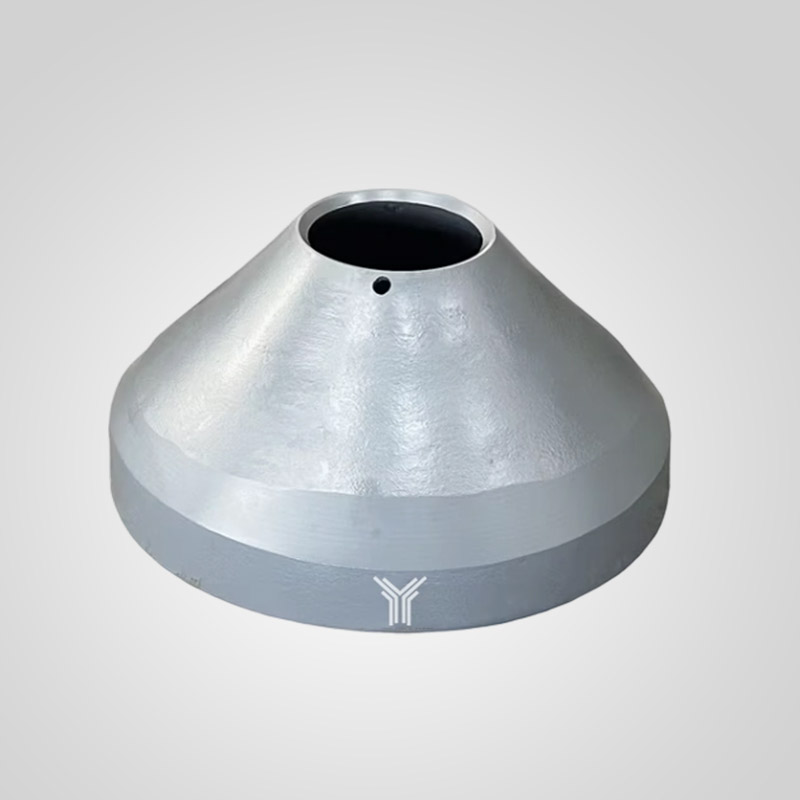

Replacement Mantle 603:9106 for Trio TC1000 Cone Crusher

The 603:9106 Mantle is a precision-engineered wear component designed specifically for the Trio TC1000 series cone crushers. Manufactured to exceed OEM metallurgical standards, this liner utilizes high-grade Manganese Steel to deliver consistent crushing performance in high-abrasion aggregate and mining applications. As a critical Cone Crusher Liner, it ensures optimal chamber geometry and throughput efficiency.

Core Engineering Advantages

Our crusher spares are developed focusing on the tribological interaction between the liner and the crushed material. Unlike generic castings, our process involves:

• Optimized Microstructure: We utilize a water-quenching heat treatment process (1050°C) to ensure a fully austenitic structure. This prevents carbide precipitation at grain boundaries, which is the primary cause of premature cracking in standard manganese liners.
• Work-Hardening Capability: The selected Mn18Cr2 alloy possesses a high work-hardening rate. While the liner remains ductile enough to absorb impact loads without shattering, the surface layer rapidly hardens up to 550 HB under compressive stress, significantly increasing wear resistance.
• Precision Fitment: All mating surfaces undergo CNC Precision Machining to ensure 100% contact with the head center. This eliminates gaps that can lead to stress risers and liner loosening during operation.

Technical Specifications

Performance Analysis: Premium vs. Standard

Field data collected from operations processing granite and basalt (Work Index > 18) demonstrates the performance differential of our wear parts:

Quality Assurance & Manufacturing

We operate as specialized crusher part suppliers where quality is quantified, not assumed. Every 603:9106 Mantle undergoes:

• Dimensional Inspection: Laser scanning to verify profile accuracy against OEM blueprints.
• Non-Destructive Testing (NDT): Ultrasonic testing (Level II) to detect internal porosity or shrinkage defects common in sand casting.
• Traceability: Each unit is stamped with a unique heat number tracking back to the specific furnace melt and heat treatment chart.

Field Diagnosis: When to Change Your Mantle

Proper maintenance of spare parts requires recognizing wear patterns before catastrophic failure occurs. Inspect the TC1000 Mantle for the following:

1. The “Bell” Effect: If the bottom of the mantle becomes extremely thin while the top remains thick, it indicates feed segregation or operating at a low choke setting. This requires adjustment of the feed arrangement.

2. Peening or “Flowing”: Manganese steel flows under pressure. If you observe the metal expanding at the bottom edge (mushrooming), grind this lip off immediately. Failure to do so can cause the mantle to seize against the locking nut or torch ring, making removal extremely difficult.

Expert Implementation Advice

As a manufacturing engineer, I recommend the following when installing the 603:9106:

• Backing Compound: Always use a high-performance epoxy backing compound. This acts as a damper for impact vibration and fills voids between the mantle and head. Without it, the mantle may crack due to point loading.
• Torque Specification: Ensure the locking nut is tightened to the specific torque setting for the TC1000 to prevent the mantle from spinning on the head.
• Run-in Period: Allow the new liner to work-harden. Operate at 50% feed for the first 30 minutes, then gradually increase to full choke. This establishes the initial hardened skin.

Frequently Asked Questions

Q1: Is the 603:9106 Mantle interchangeable with other TC series crushers?
This specific part number is engineered for the TC1000 geometry. While TC series crushers share design concepts, dimensions vary by model size. Always verify the part number against your parts manual or consult us to ensure compatibility.

Q2: Why is Mn18Cr2 preferred over Mn13Cr2 for the TC1000?
The TC1000 operates with high crushing forces. Mn13 (standard manganese) often wears away by abrasion before it can fully work-harden. Mn18Cr2 offers a higher initial yield strength and better hardening capabilities, making it superior for hard rock crushing.

Q3: Does this mantle come pre-machined?
Yes, the seating surfaces are CNC machined to ISO 2768-mK tolerances. However, the crushing surface is “as-cast” to provide the necessary texture for the initial rock grip.
