Thyssenkrupp KB63 Wear Plate — Specifications, fitment, and product overview

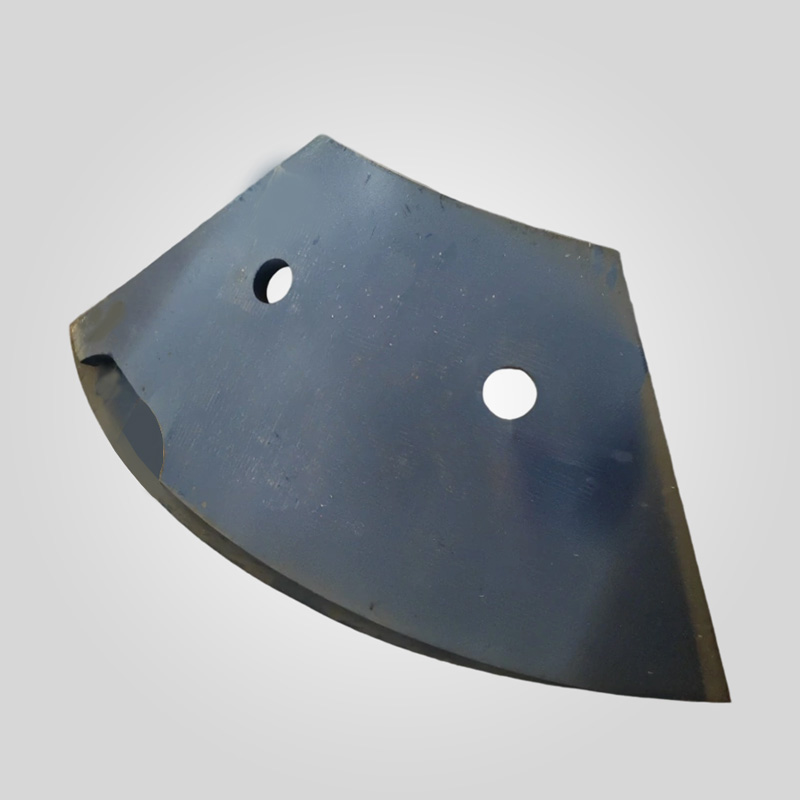

The wear plate for Thyssenkrupp KB63 gyratory crushers is a heavy-duty protective liner that shields the upper shell and feed zone from abrasive wear and high-impact loading. Built for long service cycles and smooth material flow, it’s a bolt-on component within the broader ecosystem of crusher Parts, ensuring reliable uptime and lower lifecycle costs in hard rock mining.

Key functions

• Primary protection: Prevents direct contact between ore and the crusher housing to reduce structural wear.
• Impact resistance: Tough base metallurgy with work-hardening behavior resists cracking and gouging.
• Flow stability: Contoured surfaces support consistent feed and steady throughput.
• Serviceability: Bolt-on design enables fast change-outs, minimizing downtime.

Core specifications

Material selection

• Mn13: Balanced toughness and cost for mixed ore conditions.
• Mn18: Higher work-hardening potential for impact-heavy feeds.
• Cr‑Mo alloy: Better abrasion resistance when impact is moderate but wear is severe.
• Bimetal / hardfacing: Ultra-hard surfaces on tough backing for extreme duty.

Choose materials based on ore abrasivity, expected throughput, and the target interval between change-outs. Coordinate with your maintenance strategy and crusher Parts inventory to optimize total cost of ownership.

Fitment and compatibility

• Model-specific geometry: Plates are curved and contoured to KB63 shell and feed lip; cross-model mixing risks poor flow and accelerated wear.
• Bolt pattern accuracy: Match OEM hole positions and tolerances to maintain clamping force and avoid fretting.
• Critical clearances: Verify gaps to moving components to prevent interference at peak throw.

Installation and maintenance

• Inspection cadence: Track wear thickness and edge erosion; replace before reaching minimum safe thickness.
• Torque discipline: Use calibrated torque and a cross pattern; re‑torque after the first shift.
• Surface preparation: Clean seating faces; remove burrs and corrosion; check flatness and fit-up.
• Change-out planning: Bundle wear plates with adjacent liners for consistent chamber geometry and shorter downtime.

Ordering checklist

• Provide: KB63 variant, chamber revision, ore blend, throughput, and target runtime.
• Deliverables: Drawings, mill certificates, dimensional reports, and packing lists aligned to your crusher Parts logistics.
