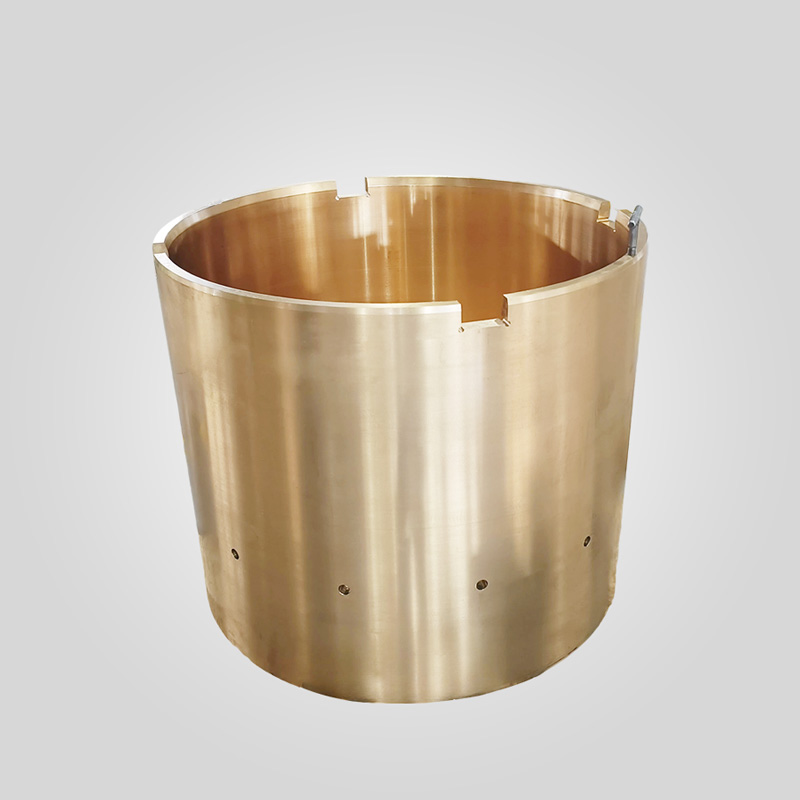

KB63-89S Outer bushing For Gyratory Crusher 2080727571

Outer bushing wear on a KB63-89S gyratory crusher usually appears before a complete failure: rising oil temperature, bronze particles in the lubrication circuit, abnormal vibration after liner replacement, eccentric assembly noise, uneven main shaft movement, or repeated shutdown alarms under load. The KB63-89S Outer Bushing 2080727571 is positioned in the load path of the gyratory motion, so the part must control friction, maintain oil film stability, and protect the mating steel components from direct contact.

This gyratory crusher part is used for Thyssenkrupp KB63-89S primary crushers where the eccentric movement operates under heavy radial load, impact load, and contaminated working conditions. A mismatch in alloy grade, bore geometry, lubrication groove design, or final machining allowance can cause metal-to-metal contact. Once the oil film breaks down, the repair cost is no longer limited to a bushing replacement. The eccentric assembly, main shaft contact area, seals, lubrication lines, and nearby bearing surfaces may also require inspection or rework.

Product Parameter Table

Direct Replacement Focus

The KB63-89S Outer Bushing 2080727571 is not a general bronze sleeve. It is a heavy bronze interface part used in a primary crusher where the eccentric motion, main shaft load, crushing force, and oil system must work together. In field maintenance, a bushing failure is often discovered after operators see abnormal oil analysis results or temperature changes. By that time, the bronze surface may already show scoring, heat discoloration, embedded particles, or uneven contact marks.

Yonsmen Machinery supplies this gyratory crusher part for customers who need a replacement matched to operating conditions rather than a catalog-only component. Before production, the part number, crusher model, sample size, installation position, lubrication groove design, and material grade should be checked together. This process reduces the risk of receiving a bronze bushing that looks correct but fails during installation because of a wrong shoulder height, oil channel mismatch, or bore dimension deviation.

Material Selection for Heavy Gyratory Load

High-leaded bronze is commonly selected for crusher bushings because lead particles in the bronze matrix help improve sliding behavior under boundary lubrication. In a gyratory crusher, the lubrication film can be disturbed by shock load, dust contamination, start-stop operation, or incorrect oil viscosity. The bronze must allow controlled wear before the steel mating surface is damaged. This is why material selection cannot be based only on price per kilogram.

ZCuPb20Sn5 is a common option for heavy sliding parts. Its lead content supports anti-seizure behavior, while tin contributes to matrix strength. This grade is suitable for applications where load, friction, and contamination risk must be balanced. ZCuPb10Sn10 has lower lead content and higher tin content, giving a different balance between strength and sliding performance. ZCuPb24Sn5 may be selected for operating conditions requiring higher lead content, but the final choice should be confirmed according to the crusher model, lubrication condition, shaft material, and site maintenance records.

For this KB63-89S Outer Bushing, Yonsmen Machinery can review the material requirement from the customer drawing, old part marking, or operating history. If the old bushing failed through adhesive wear, surface seizure, or oil starvation, simply replacing it with the same grade may not solve the root cause. The oil line, temperature trend, shaft surface, installation clearance, and lubricant cleanliness should also be checked before the crusher returns to full load.

Why Dimensional Verification Matters

Public product listings confirm the part number and weight, but they do not provide a complete production drawing for ID, OD, height, oil groove geometry, or final clearance. For a 1067 kg bronze bushing, even a small dimensional error can create installation difficulty or shorten service life. A bore that is too tight may reduce oil film formation and increase heat. A bore that is too loose may allow unstable movement, vibration, and uneven contact pressure. Incorrect end-face contact can also transfer load into areas that were not designed to carry it.

Yonsmen Machinery treats drawing confirmation as a required step for this gyratory crusher part. Customers can provide an OEM drawing, used sample, measurement report, 3D scan, or installation photos. If the bushing is reverse-engineered from a used sample, wear compensation must be considered. A worn ID should not be copied directly as the new machining size. The actual production dimension must be calculated from the mating part, original design intent, and operating clearance requirement.

Typical Failure Signs Before Replacement

Bronze bushing replacement is usually planned during shutdown, but early symptoms often appear during operation. Operators may notice oil temperature increasing under the same feed condition, unstable crusher power draw, metallic particles in oil filters, noise from the eccentric area, or vibration after a restart. Maintenance teams may also find uneven wear patterns, scoring marks, dark heat spots, blocked oil grooves, or deformation around the loaded zone.

If the KB63-89S Outer Bushing is inspected after removal, the surface should be checked for embedded hard particles, oil starvation marks, cracks, fretting, and abnormal edge loading. Edge loading can indicate misalignment, incorrect seating, or deformation of the mating structure. Long scratches in the sliding direction often point to contamination. Localized dark areas may indicate heat concentration or insufficient lubrication. These observations help decide whether the new bushing should keep the same material and groove pattern or whether the lubrication and installation process needs correction.

Manufacturing Control

For a bronze component of this size, production control starts before machining. Chemical composition should be checked to confirm the lead, tin, copper, zinc, nickel, and impurity ranges. Hardness testing helps verify that the casting condition matches the selected material grade. After rough machining, the bushing should be checked for casting defects, shrinkage, cracks, and visible inclusions. Final machining must control bore geometry, end-face parallelism, groove location, and chamfer transitions.

Oil grooves are not decorative features. They distribute lubricant across the bearing surface and help prevent dry contact during heavy load operation. A groove placed in the wrong location can reduce contact area or fail to deliver oil to the loaded zone. For this reason, Yonsmen Machinery manufactures the groove pattern according to drawing or sample verification instead of using one general groove design for all crusher models.

Packaging also matters for a heavy machined bronze part. The finished bushing should be protected from impact, moisture, and surface contamination during storage and transportation. Bearing surfaces must be covered or wrapped so that no hard particles damage the machined area before installation. For long-distance export shipments, wooden case support and anti-rust protection should be arranged according to the part weight and handling method.

Installation and Maintenance Notes

Before installation, the maintenance team should clean the housing, oil channels, and mating surfaces. Old bronze debris, hardened oil, dust, and metal particles must be removed. The new bushing should not be forced into position if resistance is abnormal. Forced installation can damage the bushing edge, change the fit, or create hidden stress. Lifting points and handling tools must be selected for a 1067 kg component, and the bushing should remain protected during movement around the workshop.

After assembly, the lubrication system should be checked before the crusher is loaded. Oil flow, filter condition, oil temperature, and pressure should be monitored during commissioning. A short unloaded or light-load observation period can reveal abnormal temperature rise before full production begins. If bronze particles appear quickly after installation, the crusher should not continue operating until the cause is checked. Early inspection is cheaper than eccentric seizure, shaft repair, or emergency shutdown during peak production.

Why Choose Yonsmen Machinery

Customers choose Yonsmen Machinery for crusher bronze parts because the supply process is based on part number checking, material selection, drawing review, and machining verification. For the KB63-89S Outer Bushing 2080727571, the key requirement is not only producing a bronze ring with the correct weight. The part must match the crusher assembly, lubrication route, operating load, and maintenance schedule.

Yonsmen Machinery supports mining, quarrying, cement, and aggregate customers that need replacement parts for planned shutdowns and emergency repairs. The technical team can work from part numbers, samples, drawings, and site feedback. This is useful for older KB series equipment where original documentation may be incomplete or where previous repairs changed the mating dimensions. Instead of treating the part as a simple commodity, Yonsmen Machinery checks the functional details that affect installation and service life.

This gyratory crusher part can be supplied as a finished machined bushing or produced according to a customer-specific requirement. Material certificates, dimensional inspection, hardness records, and packaging photos can be arranged according to order requirements. For buyers managing multiple crusher sites, this documentation helps reduce receiving inspection time and supports spare part traceability.

Ordering Information

To request a quotation for KB63-89S Outer Bushing 2080727571, provide the crusher model, part number, required quantity, old part photos, installation position, and any available drawing or sample measurement. If the part is needed for a scheduled shutdown, include the shutdown date, destination port, and required delivery term. If the old bushing failed early, provide photos of the worn surface, oil filter findings, and operating symptoms. This information helps Yonsmen Machinery recommend a practical production and inspection plan.

The KB63-89S Outer Bushing 2080727571 is a heavy-duty bronze replacement for the Thyssenkrupp KB63-89S gyratory crusher. With confirmed part number, 1067 kg reference weight, high-leaded bronze material options, and drawing-based machining control, it is suitable for maintenance teams that need a fit-focused replacement rather than a generic bronze sleeve. For primary crushing circuits, correct bushing selection protects the eccentric assembly, supports stable gyratory movement, and helps reduce the cost of unplanned downtime.
