Preventing Structural Catastrophe: Sandvik CJ612 Pitman PJ402-4248-00 (7450kg) Cast Steel Specifications

Technical Specifications: Sandvik CJ612 Pitman PJ402-4248-00

Eradicating Flexural Fatigue in Single-Toggle Primary Crushing

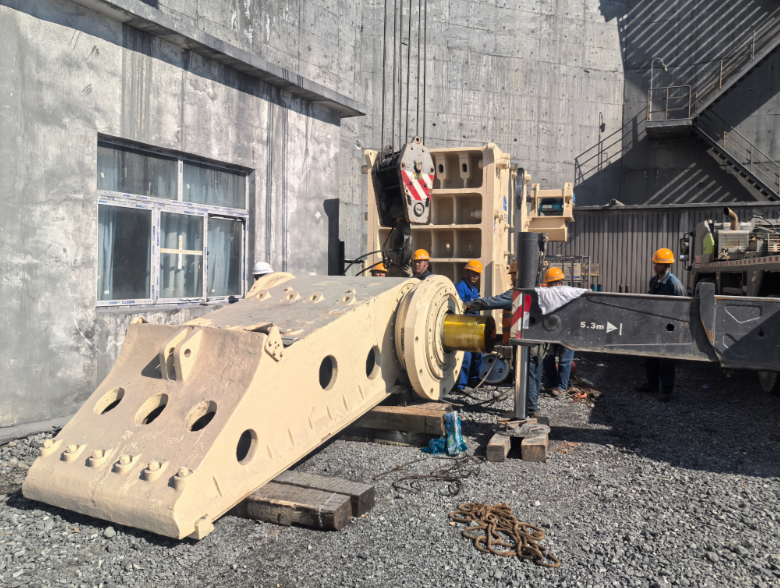

In a single-toggle jaw crusher architecture like the Sandvik CJ612, the pitman is not merely a mounting plate for wear liners; it is the central kinetic hub of the entire machine. It hangs directly on the massive eccentric shaft, meaning it must simultaneously absorb the vertical rotational lifting forces from the drive system and the immense horizontal compressive forces required to fracture high-silica rock. The 402-4248-00 pitman, weighing a massive 7450kg, is engineered precisely to resist the complex, multi-directional bending moments generated during this continuous cycle.

A pitman casting that lacks the appropriate section modulus or internal webbing will experience cyclical micro-flexing under heavy load. Over hundreds of thousands of crushing cycles, this microscopic elasticity initiates flexural fatigue cracking, typically originating near the lower toggle seat or the upper bearing saddles. By deploying a heavily ribbed, highly optimized cast steel geometry, the PJ402-4248-00 ensures absolute structural rigidity. This rigidity translates directly to higher crushing efficiency, as zero kinetic energy is lost to component flex, forcing 100% of the mechanical power directly into fracturing the ore.

Metallurgical Integrity: ASTM A148 Grade 105-85 Cast Steel

Manufacturing a 7450kg structural casting requires far more than pouring molten metal into a sand mold. The 402-4248-00 pitman is cast from premium ASTM A148 Grade 105-85 high-strength alloy steel. This specific grade provides an exceptional yield strength exceeding 585 MPa and a tensile limit over 725 MPa, giving the pitman the sheer brute strength required to survive catastrophic tramp iron events without sustaining permanent plastic deformation.

Following the primary casting phase, the entire 7450kg component undergoes a meticulous, multi-day thermal stress relief protocol. The casting is slowly heated to 600°C, held at temperature to allow the crystalline structure to homogenize, and then strictly furnace-cooled at a controlled rate. This annealing process neutralizes the severe internal residual stresses generated during the initial solidification of the heavy and light cross-sections. If a heavy-duty pitman bypasses this thermal cycle, the internal tensile stresses remain trapped; the moment the crusher encounters a hard rock spike, these trapped stresses release violently, tearing the casting apart from the inside out.

Precision Line-Boring and Spherical Bearing Coaxiality

The upper section of the 402-4248-00 pitman houses the massive outer races of the spherical roller bearings. The operational lifespan of these highly expensive bearings is entirely dictated by the machining accuracy of the pitman’s bearing saddles. To prevent any angular misalignment, the left and right bearing housings on this pitman are CNC line-bored in a single, continuous machining setup.

This single-setup line-boring guarantees a coaxiality tolerance of less than 0.03 mm across the entire width of the heavy casting. Furthermore, the bore diameters are machined to an exact ISO IT6 interference fit. If a pitman is machined with an IT8 tolerance or suffers from a 0.08 mm coaxial deviation, the eccentric shaft will bend slightly upon installation. This forced deflection concentrates the multi-ton crushing load onto a single row of bearing rollers, stripping the hydrodynamic oil film, spiking the operating temperature, and causing total bearing seizure within weeks of commissioning.

Volumetric Non-Destructive Testing (NDT) Verification

The thickest sections of any steel casting—particularly where the main body transitions into the upper bearing eyes and the lower toggle seat groove—are highly susceptible to shrinkage porosity during the cooling phase. To guarantee structural flawlessness, the 402-4248-00 is subjected to Level III Ultrasonic Testing (UT) across its entire volumetric mass. High-frequency sound waves verify that the internal steel matrix is entirely dense and free from hydrogen flakes, hot tears, or sand inclusions.

Additionally, all high-stress radius transitions and machined surfaces undergo Magnetic Particle Inspection (MPI) to detect any microscopic surface anomalies that could act as fatigue initiation sites. When heavy industry engineers evaluate replacement jaw crusher parts, the presence of comprehensive NDT documentation separates a reliable, decade-long structural asset from a catastrophic liability waiting to happen.

Kinematic Optimization and Total Cost of Ownership

The geometric profile of the PJ402-4248-00 pitman directly dictates the crushing chamber’s nip angle and the elliptical stroke pattern. This precise kinematic trajectory ensures that rock is pulled efficiently into the chamber, fractured under optimal compression, and discharged without packing in the lower zone. An improperly modeled pitman alters this stroke, radically increasing power draw and accelerating wear on the manganese jaw dies.

Procuring inferior jaw crusher parts for this central kinetic hub leads to cascading mechanical failures that cripple quarry production. If a substandard pitman warps under load, it destroys bearings, snaps toggle plates, and damages the primary main frame. By standardizing on dimensionally flawless Crusher Wear Parts and verified structural components like the 402-4248-00, mine operators secure their primary reduction circuit. The investment in exact ASTM metallurgy and IT6 machining tolerances guarantees predictable mechanical availability, vastly reducing emergency downtime and minimizing the total cost of processing per ton.
